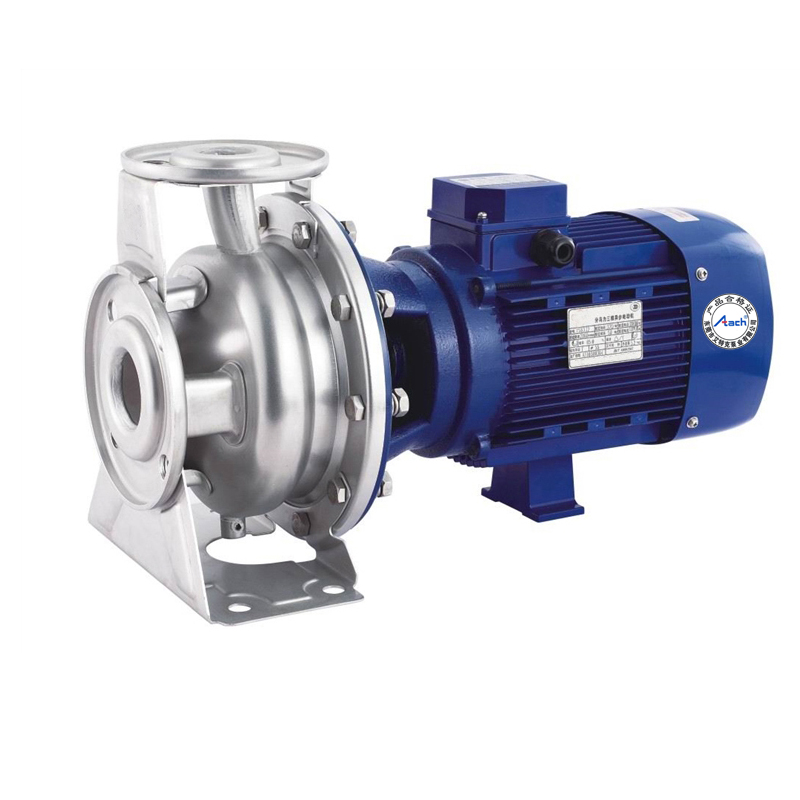

Atach Stainless Steel 304 Water Pump for Pressure Boiler Feeding GZA(S)65-40-200/5.5

- Name of pump: Atach stainless steel water pump for pressure boiler feeding GZA(S)65-40-200

- Pump Type: Centrifugal Pump

- Pump model: GZA(S)65-40-200

- Pump brand: ATACH

-Installation Type: horizontal

- Impeller Quantity: 1 pcs

- Rated pump capacity: 12.5 m³/h

- Rated pump head: 32m

- Power/speed: 2.2 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: SUS304,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 65mm*40mm

- NPSH: 2 m

- Application:
The pumps are suitable for transporting to stainless steel SUS304 or SUS316.clean media which are non-aggressive

- Mainly applied on:
Water supply systems
Pressure boiler feeding
Pure water treating systems
Refining chemical industries
Washing and sprinkling

- Preformance limits:
Max. Working pressure: 10bar
To avoid overload and danger the pump should be operated within the performance ranges.Media temperature:
With NBR/ceramic/carbon:-20ºC-+80ºC
With Viton/ceramic/carbon:-20ºC-+110ºC
With EPR/ceramic/carbon:-20ºC-+110ºC

If you need other specifications or parameters of GZAS series Stainless steel centrifugal pump, please contact us in detail.
