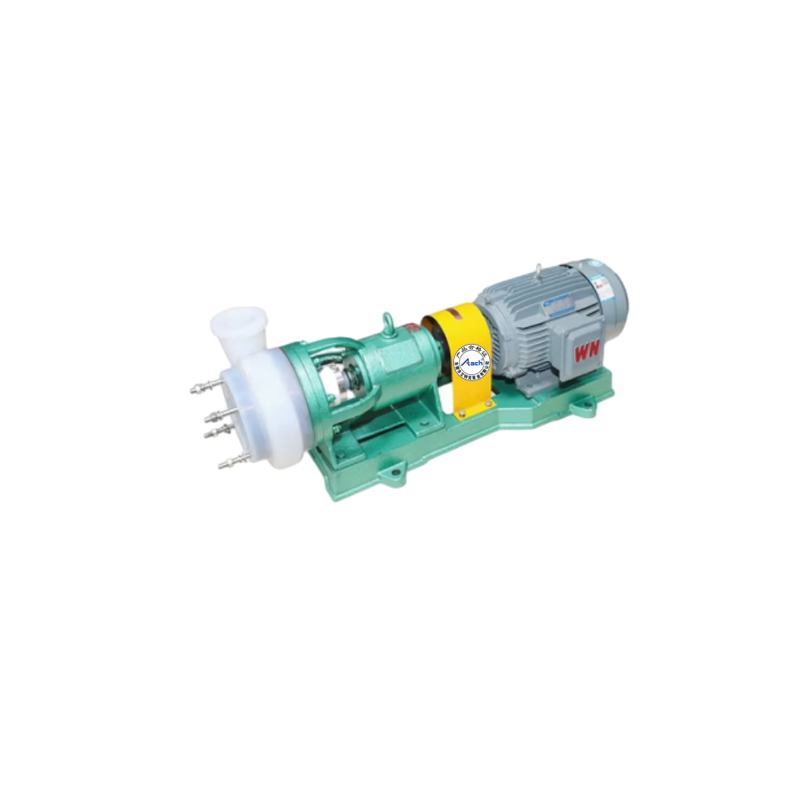

40FSB-30L Concentrated Sodium Hydroxide Corrosion Resistant Centrifugal Pump

- Name of pump:40FSB-30L Concentrated sodium hydroxide corrosion resistant centrifugal pump

- Pump Type: Centrifugal Pump

- Pump model:40FSB-30L

- Pump brand: ATACH

-Installation Type: horizontal coupling

- Impeller Quantity: 1 pcs

- Rated pump capacity: 10 m3/h

- Rated pump head: 30 m

- Power/speed: 3 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: fluoroplastics   F46

- Shaft Seal: Mechanical seal

- Inlet / outlet : 40mm*32mm

- FSB type fluoroplastic anti-corrosive pump

This type of pump is dedicatedly designed in accordance with the relevant Performance parameters which comply with the international standard and integrates the processing procedures of the non-metal pump. It can transport continuously any kind of corrosive mediums (including acid, Alkaline oxidant and so on.) at any viscosity level (excluding solid granules) at the temperature ranged from-80ºC-200ºC. It has the advantages of superior inoxidability, high mechanical strength, No toxic decomposition, Wide performance parameters, high efficiency, compact conformation, Simple maintenance, energy saving, etc. It can also avoid such problems as spilling. emitting, leaking or dropping of the liquid, which can be adopted as the ideal anticorrosion transportation equipment for many industries, including chemical industry, pharmacy, petroleum, metallurgy, papermaking, foodstuff, etc.

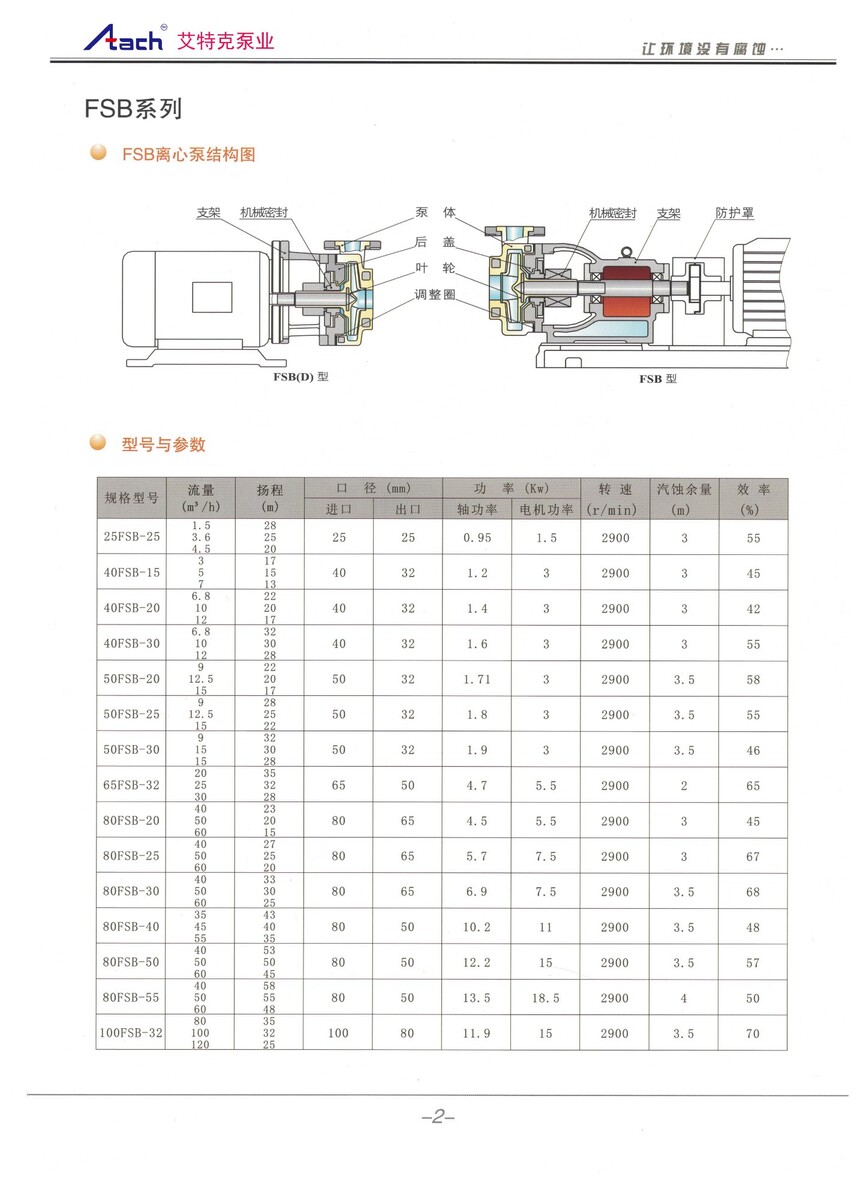

Descriptions of the technical specification as well as the model. When flow range is 1.5-100m3/Hour, the pump lift is 10-50m.


If you need other specifications or parameters of FSB series Fluoroplastic Pumps, please contact us in detail.
