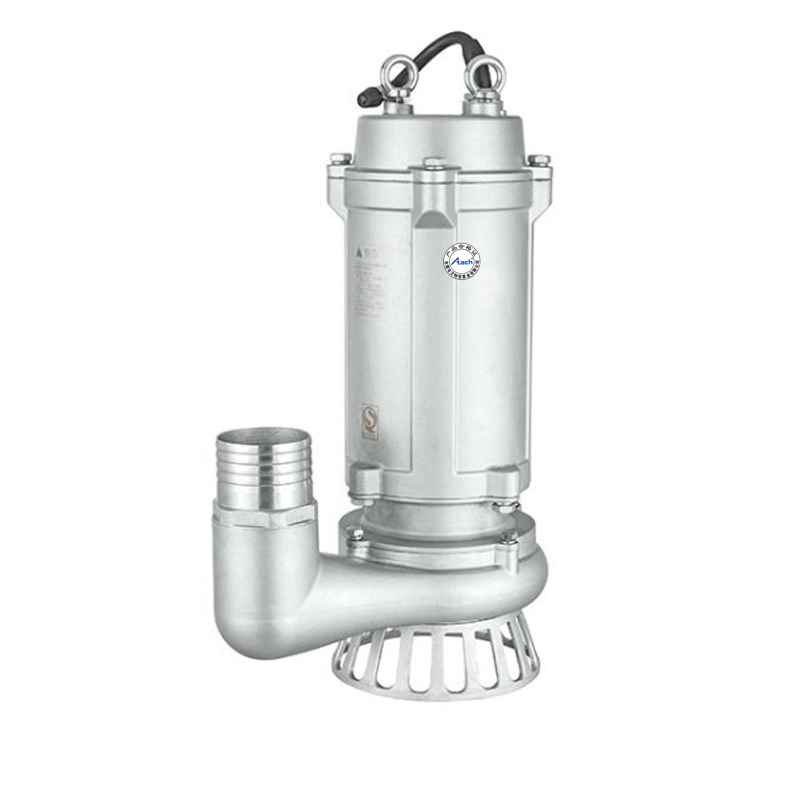

WQ15-10-1.1sqg Wear Resisting Septic Tank Pump with Cutting Device 380V

- Name of pump: Wear resisting septic tank pump with cutting device 380V

- Pump Type: Submersible pump

- Pump model:WQ15-10-1.1SQG

- Pump brand: ATACH

-Installation Type: vertical Close-Coupled

- Impeller Quantity: 1 pcs

- Rated pump capacity: 15 m3/h

- Rated pump head: 10 m

- Power/speed: 1.1 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: Cast Iron,SUS304,SUS316,SUS316L

- Shaft Seal: Mechanical seal

- outlet : 50mm

- Product Overview
WQ(D)-SQG belt cutting device submersible sewage pump has strong discharge capacity and good cutting performance. It can cut off long fibers, plastic, paper, belt, cloth strip, straw, rope and other impurities in sewage. The most advanced method is adopted to design the most reasonable hydraulic characteristics, so that the electric pump can run the best combination of dry motor and water pump with full head. The electric pump uses a high quality silicon carbide fluoro rubber machine.
1.The surface of the double-end mechanical seal and the skeleton oil seal shall not exceed 1/2 of the height of the motor, and the temperature of the pumped dirt shal not exceed 40ºC. The series of sewage and sewage submersible sewage pumps are mainly used for discharging domestic wastewater, sewage, human excrement and solid suspended solids and non-corrosive media containing short fiber paper scraps, wood chips, starch, sediment, ore particles, and pumped liquid. The temperature does not exceed 40ºC, the density is not more than 1200 kg/m³, the PH value is 5-9. The sewage pump adopts double mechanical seal and open impeller
2.20 CrNiMo alloy cutter disc and impeller are wear-resistant, non-blocking, non-wound, small in size, compact in structure and convenient to carry.


If you need other specifications or parameters of WQS series Septic Tank Pumps, please contact us in detail.
