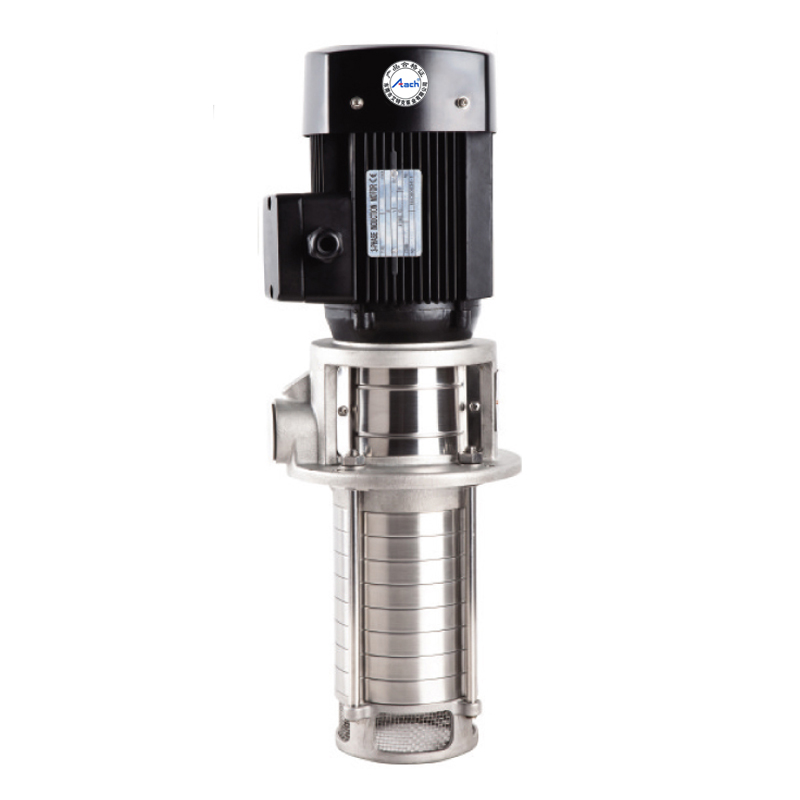

Atach Stainless Steel Centrifugal Pump Manufacturer YDL1-20

- Name of pump: Atach Stainless Steel Centrifugal Pump Manufacturer YDL1-20

- Pump Type: Centrifugal Pump

- Pump model:YDL1-20

- Pump brand: ATACH

-Installation Type: Vertical Close-Coupled

- Impeller Quantity: 2 pcs

- Rated pump capacity: 1 m3/h

- Rated pump head: 11.5 m

- Power/speed: 0.37 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: SUS304,SUS316,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 125mm*125mm

- NPSH: 5.9  m

- Main usage:can transfer hot water,Acid solution,Alkaline solution,waste water,chemical liquid,oil.
Often used in food processing, medicine,chemical industry, sewage treatment, electroplating, bleaching and dyeing, environmental protection.


- Applications:

YDL pump suitable for transporting clean, thin and non-explosive liquids which are free of solid particles and fibre and also non-aggressive to SUS304 stainless steel.To avoid overload and danger, the pump should be operated within the performance ranges.
Applications
Mechine tool coolant
Lubricants
Condensate water
Industrial washing equipment
Other situation that use Immersion pump.

- Working condition:
Liquid temperature:-15ºC~+110ºC
Ambient temperature range:-15ºC~+40ºC
To avoid overload and danger the pump should be operated within the performance ranges.

- Materials:
Impeller, pump shaft:SUS304 stainless steel
Pump head: Cast iron
Motor casing:Aluminum-alloy
Standard mechanical seal:Viton/TC/Carbon (Special mechanical seal materials are available upon request)


If you need other specifications or parameters of YDLseries Centrifugal Pump, please contact us in detail.
