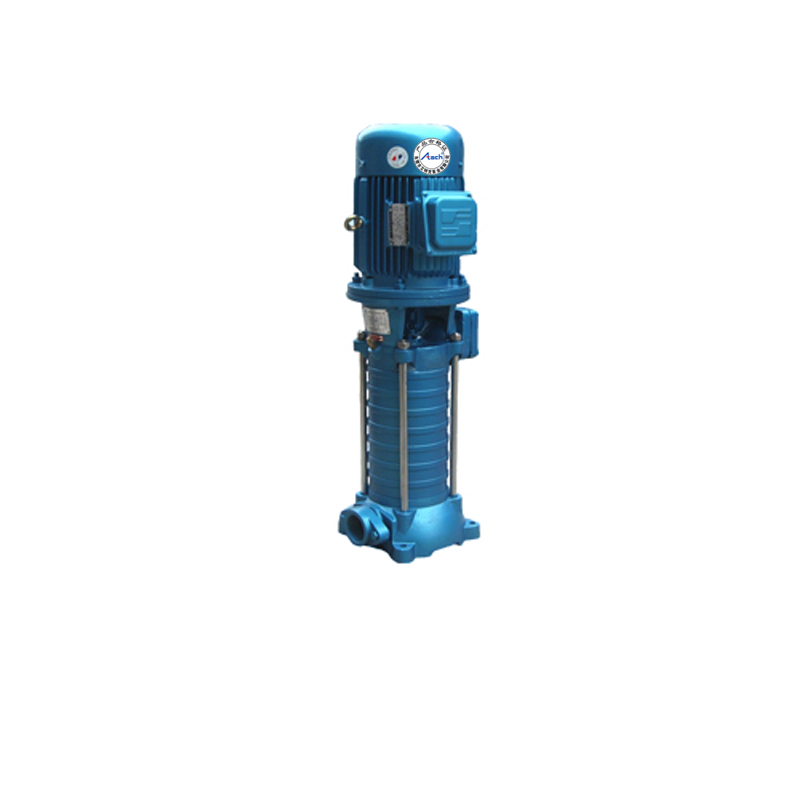

Hot Water Industrial Jockey Pump VMPR40*19

- Name of pump:Hot water Industrial jockey pump

- Pump Type: Centrifugal Pump

- Pump model:VMPR40*19

- Pump brand: ATACH

-Installation Type: vertical coupling

- Impeller Quantity: 19 pcs

- Rated pump capacity:7 m3/h

- Rated pump head: 161.5 m

- Power/speed: 7.5 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: The impeller is made of copper ,the other parts are cast iron.

- Shaft Seal: Mechanical seal

- Inlet / outlet : 40mm*40mm

- NPSH: 2  m

If you need other specifications or parameters of VMP series hot water pump  , please contact us in detail.
