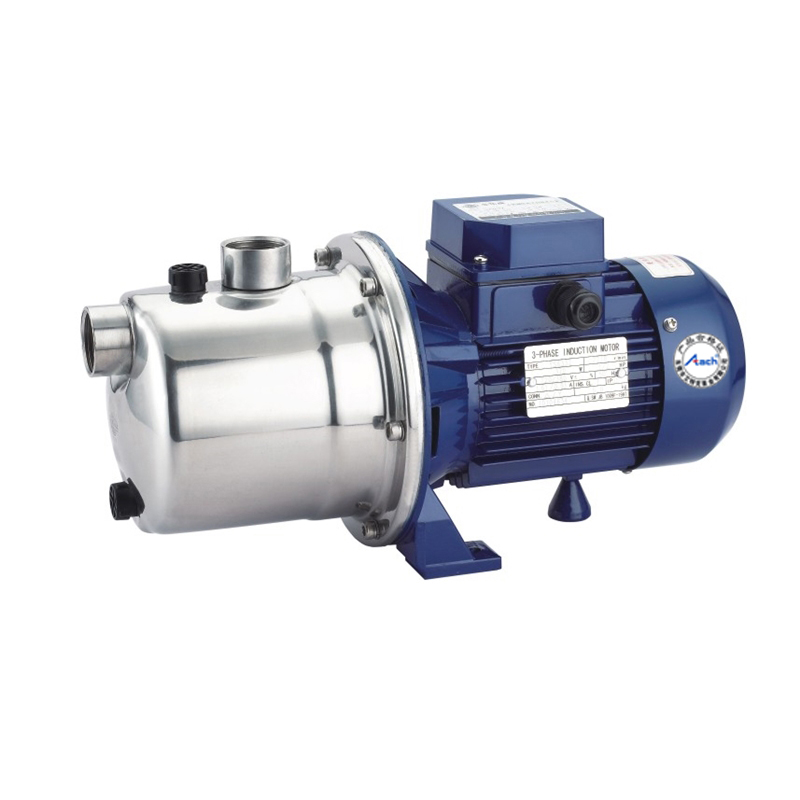

- Name of pump:Self-priming stainless steel jet pumps
- Pump Type:Self priming pump
- Pump model:SZ037
- Pump brand: ATACH
-Installation Type: horizontal
- Impeller Quantity: 1 pcs
- Pump capacity: 0~3 m3/h
- Pump head: 12~35 m
- Power/speed: 0.37 Kw/2900 r.p.m
- Power supply:3 phase/380V/50HZ /single phase
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )
- Material Supply: SUS304
- Shaft Seal: Mechanical seal
- Inlet / outlet : 25mm*25mm

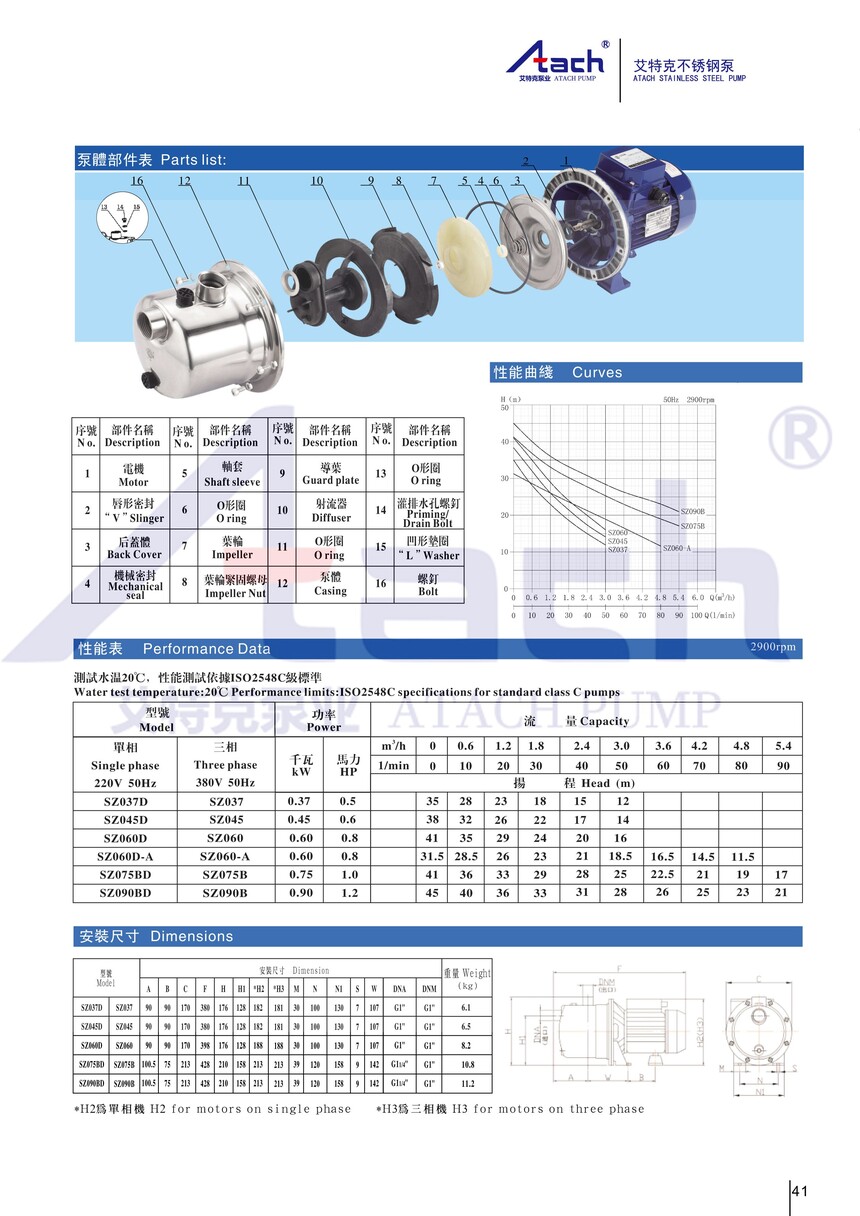

- Technical Data
Suction/Discharge size:G1 1/4". G1" Max. working pressure:6bar Max. Liquid temperature:+45ºC Max. suction head:8m Special mechancial seals are available upon request. This pump can be used at full head without overloading motor.
- Materials:
Casing and back cover:SUS304 stainless steel Impeller:SUS304 stainless steel or reinforced plastic.
guide plate and ejector:reinforcced plastic Mechanical seal:NBR/ceramic/carbon(Special materials are available upon resquest)
Pump shaft:SUS304 stainless steel
- Motor:
T.E.F.C., continuous duty,Insulation class:F orB
Protection class:IP55 or IP54
A mbient temperature range:-15C +40ºC
Altitude≤1000m
Single phase:220V. 50Hz, 2900rpm
With overload protector in singal phase motor Three phase :380V, 50Hz, 2900rpm
Over loadprotector in three phase is avaiable upon request.
If you need other specifications or parameters of SZ series Self-priming jet pumps , please contact us in detail.
