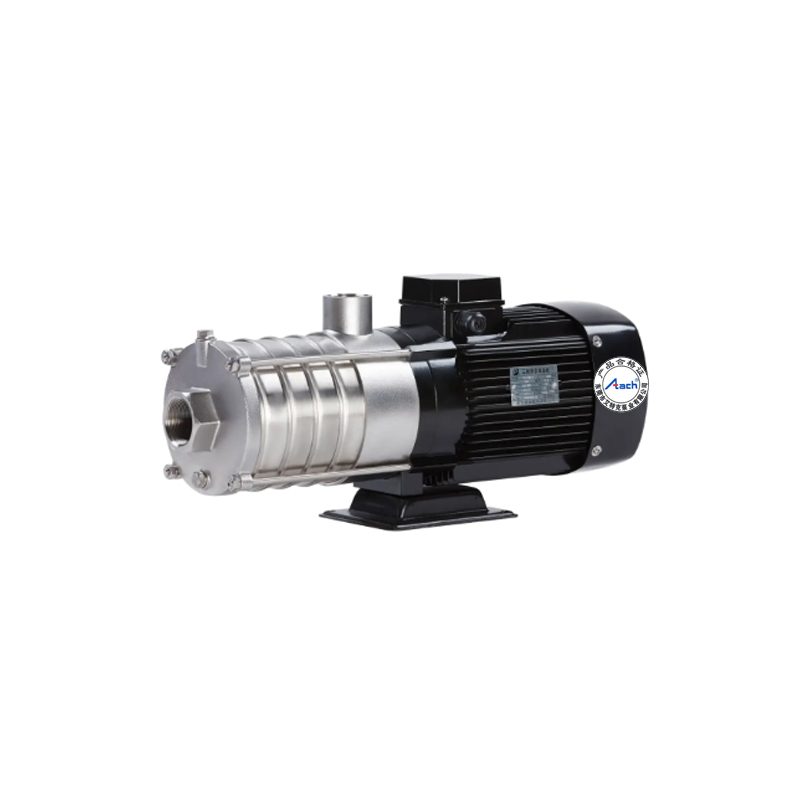

Horizontal Multi-Stage Stainless Steel Booster Water Pump DWK8-20

- Name of pump:Horizontal multi-stage stainless steel booster water pump

- Pump Type: Centrifugal Pump

- Pump model:DWK8-20

- Pump brand: ATACH

-Installation Type: horizontal

- Impeller Quantity: 2 pcs

- Rated pump capacity: 8 m3/h

- Rated pump head: 18 m

- Power/speed: 0.75 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ /single phase
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: SUS304,SUS316,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 50mm*50mm

- application:
Mainly used in industry:
Air conditioning system
Cooling system
Industrial cleaning
Water treatment (purification of water)
aquaculture
Fertilization/metering system
Environmental application
Many are dedicated to specific purposes

- Transport liquid:
A non-flammable and explosive liquid that is thin, clean, and contains no solid particles or fibers.
Pumps can transport such as mineral water, softened water, pure water, oil and other light chemical medium.
When the density or viscosity of the conveying liquid is greater than that of water, a high-power motor must be used if necessary.
Whether the pump is suitable for a particular liquid is determined by a number of factors, the most important of which are chlorine content, pH, temperature and solvent, oil content, etc.

- Operating condition:
Liquid temperature: at room temperature -15ºC to +70ºC
Hot water type  -15ºC to +105ºC
Maximum ambient temperature: +40 ° C
Maximum operating pressure: 10 bar
Maximum inlet pressure is limited by maximum operating pressure

- motor:
The motor is completely enclosed, air-cooled bipolar motor.
Protection level: IP55
Insulation class: F
Standard voltage: 50Hz: 1×220-240V
                3×220-240V/380-415V
The maximum power of single-phase motor is 2.4kW.

If you need other specifications or parameters of DWK series multi-stage stainless steel pumps, please contact us in detail.
