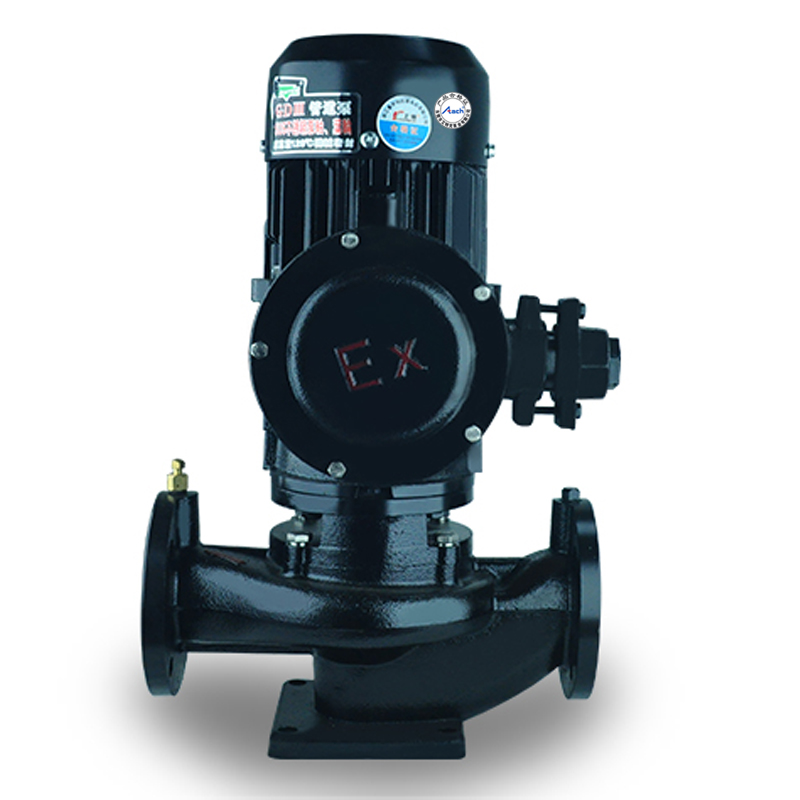

- Name of pump:Vertical single stage pipeline water pump for fire fighting system
- Pump Type: inline Pump
- Pump model:GD50-50
- Pump brand: ATACH
-Installation Type: vertical Close-Coupled
- Impeller Quantity: 1 pcs
- Rated pump capacity: 18 m3/h
- Rated pump head: 50 m
- Power/speed: 5.5 Kw/2900 r.p.m
- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )
- Material Supply: Cast Iron Casing ,Stainless Steel 304 Impeller
- Shaft Seal: Mechanical seal
- Inlet / outlet : 50mm*50mm
- NPSH: 3.5 m
- Main usage:
Application and characteristics:
Pipeline centrifugal pump is directly installed in the pipeline, and pressurizes the delivered medium. Pipeline centrifugal pumps produced by this factory have small volume, light weight and compact structure. They can be operated in single unit or connected in series (based on working pressure of the pump), and can be installed and used in a horizontal or vertical way.
GD-type pump is single-stage single-suction centrifugal pump, for delivering clear water under normal temperature or medium with physical and chemical properties similar to clear water's. They are mainly used in refrigerating, and air-conditioning system, cooling tower, garden fountain, fire-fighting and general water supply system.
Please select GDR hot water pipeline pump if the medium temperature is over 80C, and select GDF type corrosion resistance pipeline pump under corrosive circumstances.
If you need other specifications or parameters of GD series Pipeline Centrifugal Pump, please contact us in detail.
