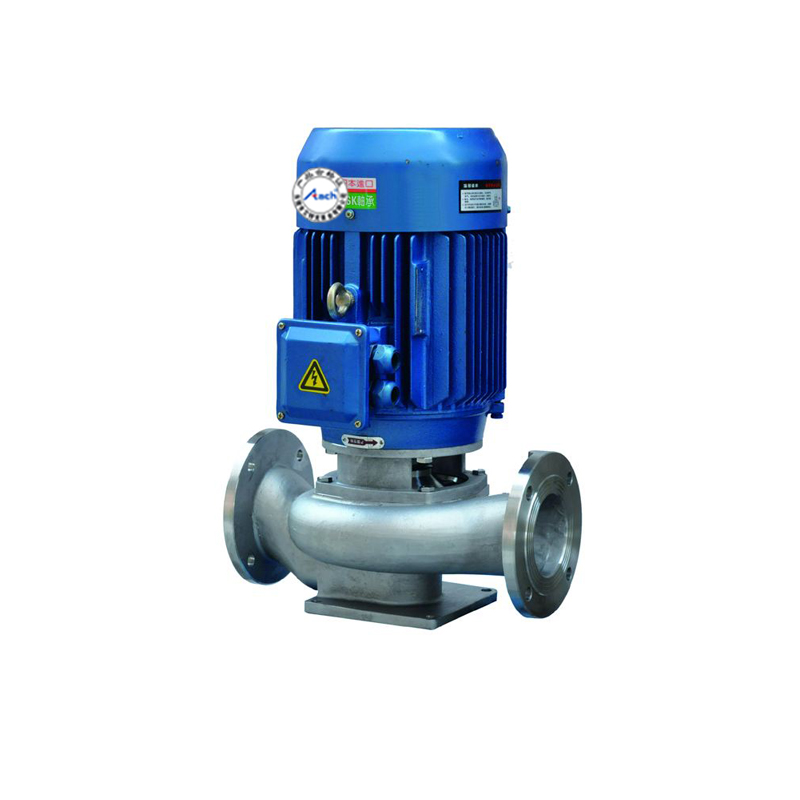

Vertical Stainless Steel Centrifugal Pump GDF125-32

- Name of pump:Vertical stainless steel centrifugal pump

- Pump Type: Pipeline Pump

- Pump model:GDF125-32

- Pump brand: ATACH

-Installation Type: vertical Close-Coupled

- Impeller Quantity: 1 pcs

- Rated pump capacity: 160 m3/h

- Rated pump head: 32 m

- Power/speed: 22 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: SUS304,SUS316,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 125mm*125mm

- NPSH: 4 m

- Main usage:

If you need other specifications or parameters of GDF series Inline Pumps, please contact us in detail.
