Which is better, a tightly coupled centrifugal pump or a pump with a coupling?

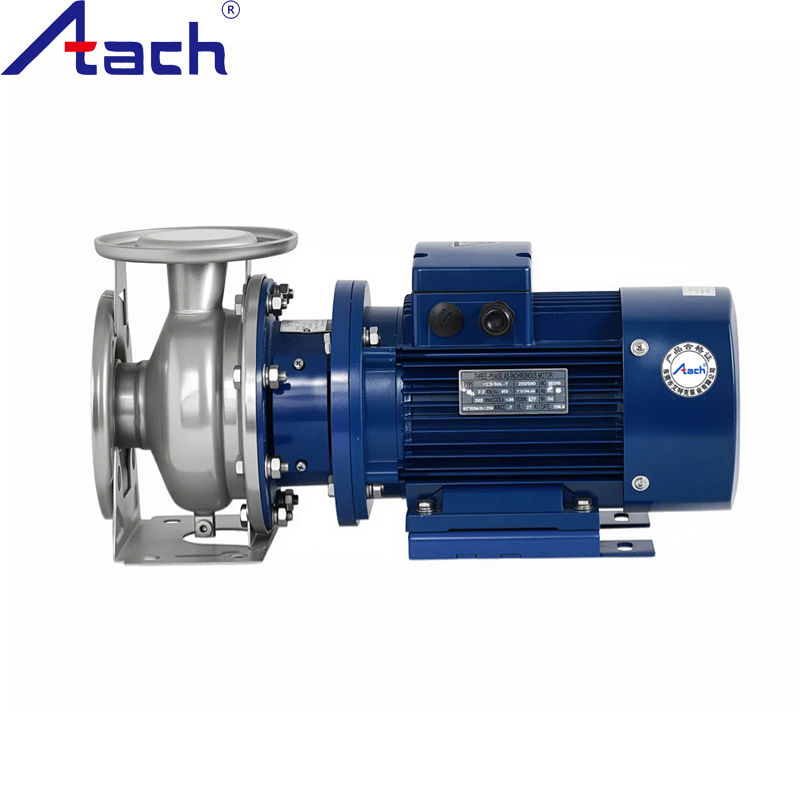

The closely coupled centrifugal pump is usually called a direct-coupled centrifugal pump, while the centrifugal pump coupled through a coupling is usually referred to as a split-type centrifugal pump. (ATACH PUMP)

Coupling centrifugal pumps and pumps with couplings are two common designs, and their advantages and disadvantages need to be evaluated based on specific application scenarios.

The following is an objective comparison from key dimensions.

‌Structure and Installation:‌ The tightly coupled centrifugal pump directly connects the motor and the pump, usually using magnetic coupling or tight coupling design.

It has a compact structure, occupies less space, and does not require alignment adjustment during installation, simplifying the installation process; while the pump with a coupling is connected by a mechanical coupling, it requires precise alignment, has a higher installation complexity, and occupies more space.‌

‌Maintenance and Reliability:‌ The tightly coupled pump has low maintenance requirements as it has no mechanical seals or bearing wear components.

The magnetic coupling type can achieve no leakage, making it suitable for corrosive media; however, if internal components are damaged, the repair may involve overall disassembly.

The pump with a coupling has more wear parts such as bearings and couplings, and requires regular inspection of buffer rubber blocks, etc.

The pump shaft wear can be replaced separately, resulting in lower maintenance costs, but the maintenance workload is greater over the long term.‌

‌Operating Performance and Efficiency:‌ The tightly coupled pump operates smoothly and has low noise.

The permanent magnet coupling design can reduce energy loss and has high efficiency, and its no-leakage characteristic enhances safety; however, if internal components are damaged, the repair may involve overall disassembly. The pump with a coupling has high torque transmission efficiency, but the alignment deviation may cause vibration or noise. The elastic coupling can absorb shock, but there is a slight efficiency loss.‌

‌Cost Factors:‌ The initial purchase cost of the tightly coupled pump may be higher, but the long-term maintenance cost is lower, saving labor and downtime; the pump with a coupling has a lower initial investment, but it needs to consider the continuous maintenance costs such as coupling replacement and alignment adjustment.‌

‌Application Scenarios:‌ The tightly coupled pump is suitable for spaces with limited space, where no leakage or low noise is required, such as in chemical, medical, or clean environments; the pump with a coupling is more suitable for industrial scenarios with high torque, heavy loads, or media containing impurities, such as wastewater treatment or heavy process industries. Its modular design is convenient for integration into existing systems.
