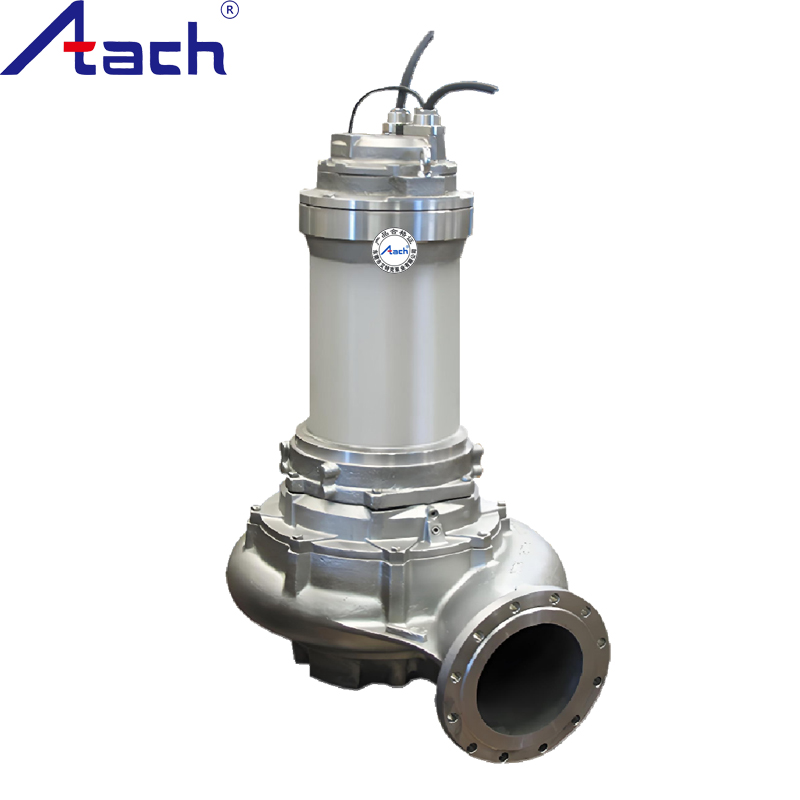

ATACH Pump Manufacturing presents WQ series submersible sewage pumps fabricated in S32205 duplex stainless steel supplied with 10m power cable automatic coupling device built-in motor winding temperat

To meet the requirements from our Russian‑side client, ATACH has developed submersible sewage waste‑water pumps perfectly adapted to the required operating conditions.

• Design duty point flow rate: 550 m³/h

• Design duty point head: 55 m

• Material of construction: S32205 (Super Duplex 2205)

• Power cable length: 10 m

• Permissible motor operating frequency range: 30‑50 Hz

• Automatic coupling unit: Supplied

• Discharge nozzle size: DN250

• Motor rated power: 160 kW

• Rotational speed: 1450 rpm

• Maximum free‑passage solid size (reference value: approx. 55 mm)

• 1 pc motor‑winding temperature monitoring sensor

• 1 pc oil‑chamber water‑ingress leakage monitoring sensor

• Export packing: Full plywood wooden crate

• Documents supplied together with goods: Pump performance test report and quality inspection certificate

• Lead time: approx. 75‑85 working days
