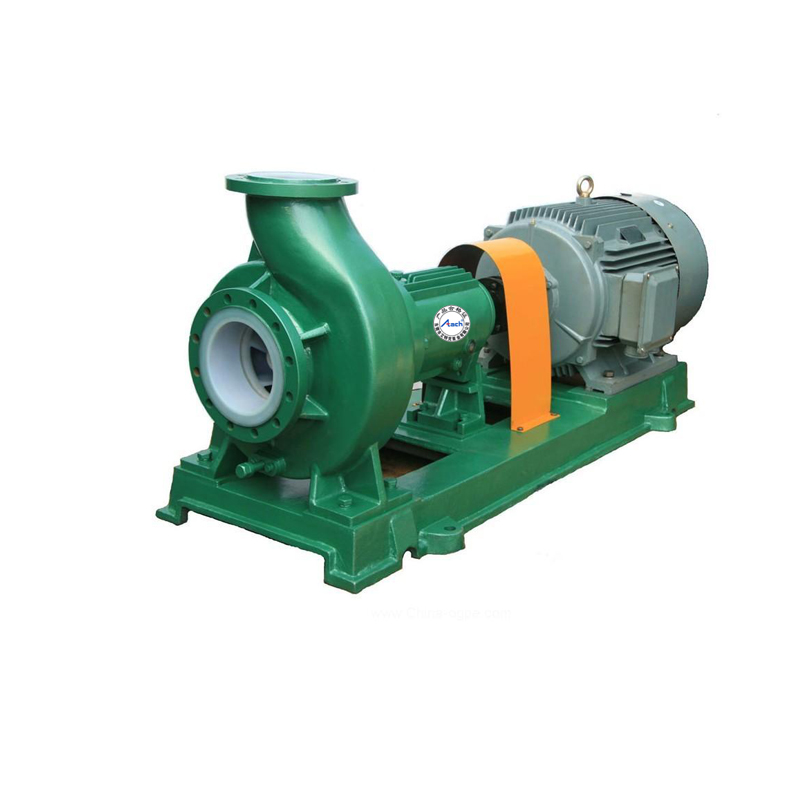

IHF40-32-125 Steel Lined Fluoroplastics Chemical Pump Suitable for Any Acid or Base

- Name of pump: Steel lined fluoroplastics chemical pump suitable for any acid or base

- Pump Type: Centrifugal Pump

- Pump model: IHF40-32-125

- Pump brand: ATACH

-Installation Type: horizontal coupling

- Impeller Quantity: 1 pcs

- Rated pump capacity: 6.5 m3/h

- Rated pump head: 20 m

- Power/speed: 2.2 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: Steel lined fluoroplastics

- Shaft Seal: Mechanical seal

- Inlet / outlet : 40mm*32mm

- The Structure and characteristics
The body of the IHF type fluroplastic centrifugal pump is made of metal shell lined with Perfluorinated Ethylene propylene (F46), and all the impeller and pump cover are made of metal inserts covered with Fluoroplastic. The unit is made via Sintering suppression. And the shaft gland is sealed by bellows mechanical mounted externally, stationary seal ring is made of alumina ceramics with 99.9% of alumina or carborundum,and the rotating seal ring is made of PTFE filling material or carborundum. It has the advantage s of Advanced and reasonable structure, Strong corrosion-resistant, Rigorous and reliable sealability, stable performance, low noise and long operational life.

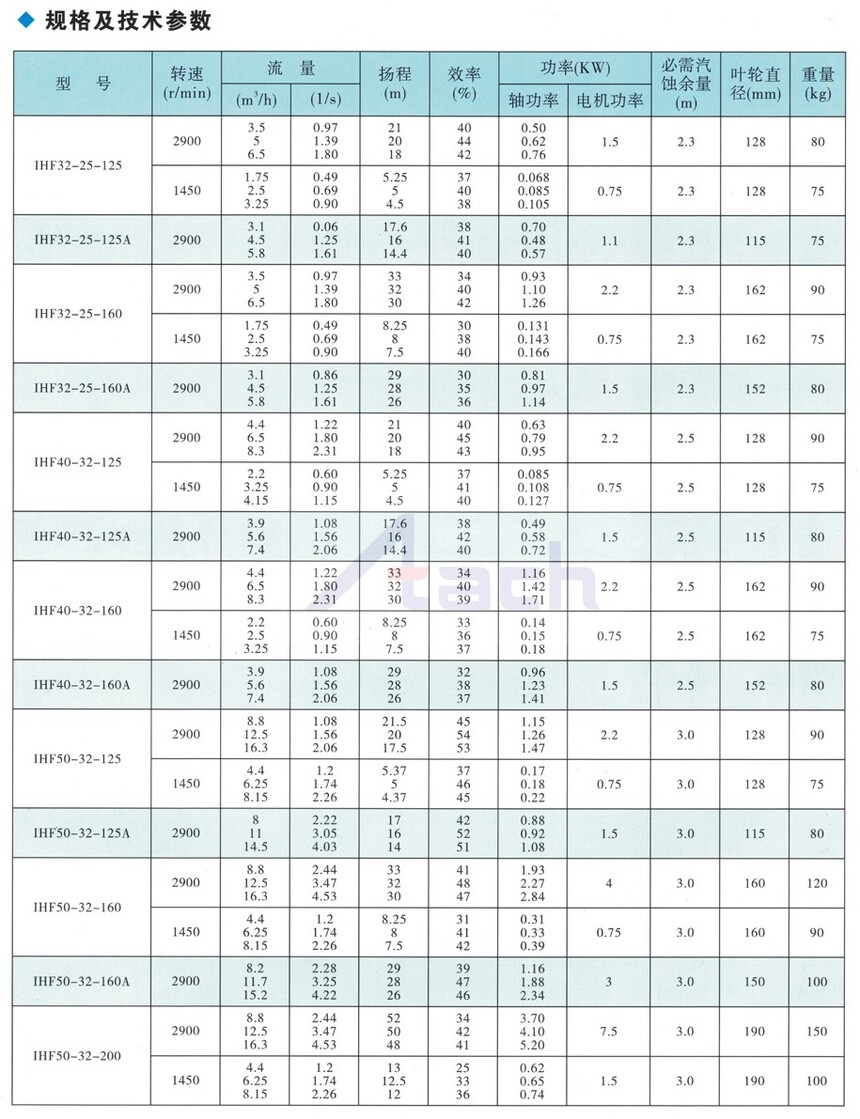

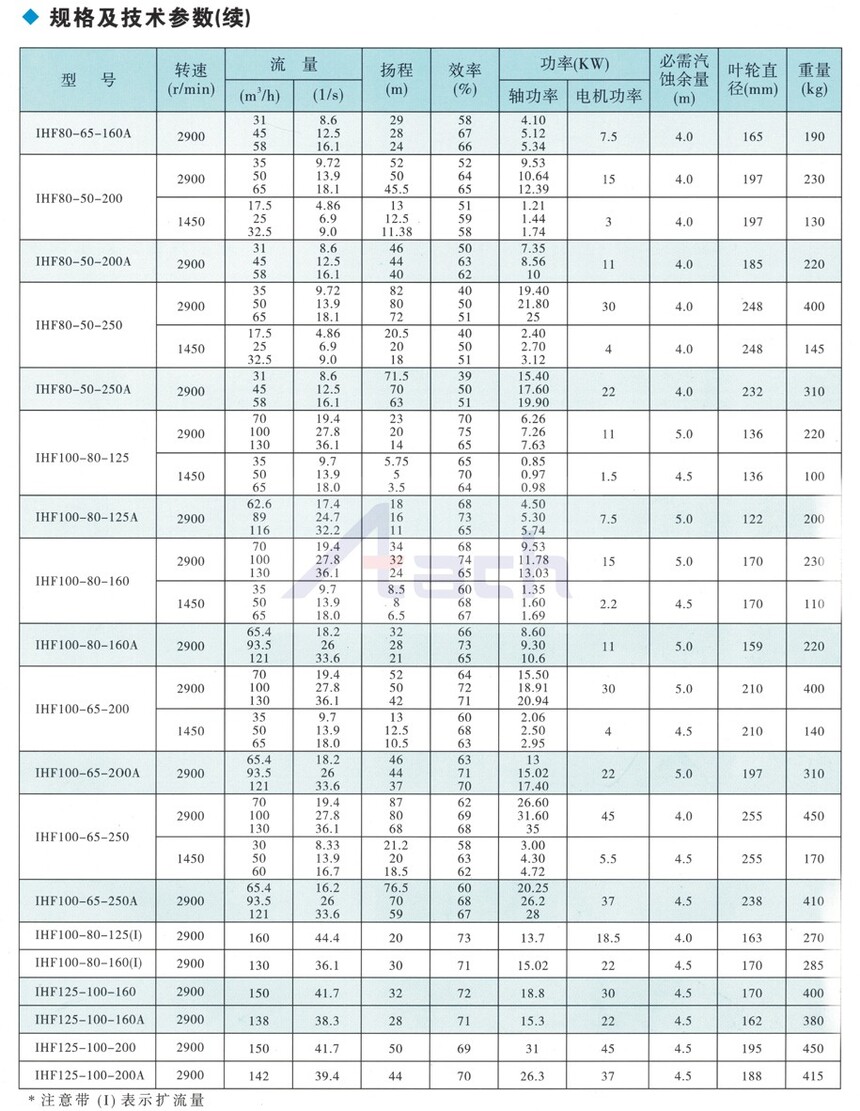

If you need other specifications or parameters of IHF series Centrifugal Pumps, please contact us in detail.
