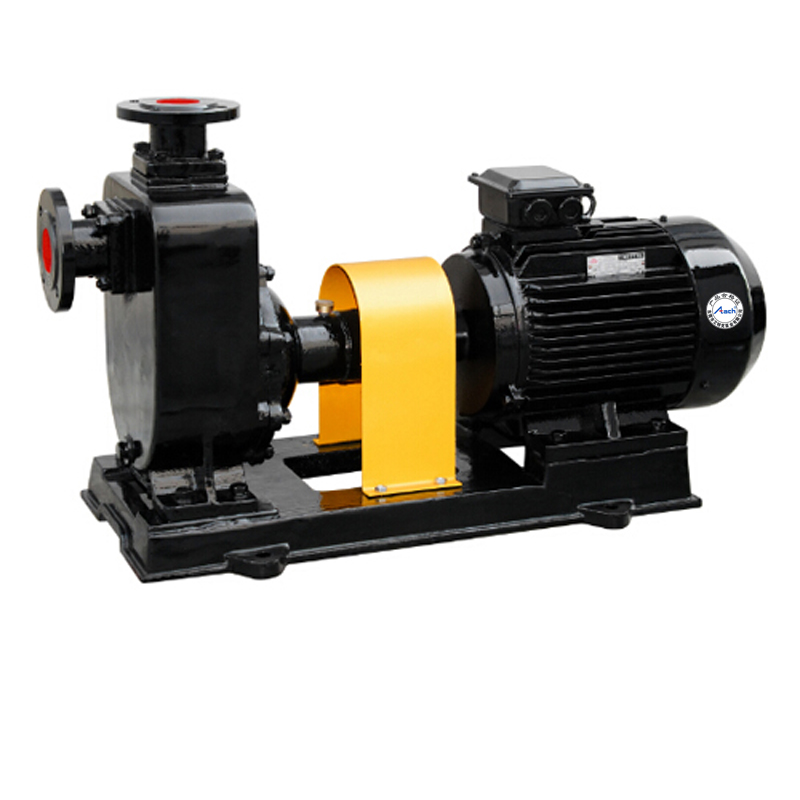

- Name of pump: self-priming non-blocking sewage stainless steel pump

- Pump Type: Self-priming Pump

- Pump model: ZW40-20-15

- Pump brand: ATACH

-Installation Type: Horizontal Coupling

- Impeller Quantity: 1 pcs

- Rated pump capacity: 20 m3/h

- Rated pump head: 15 m

- Power/speed: 2.2 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: cast iron,SUS304,SUS316,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 40mm*32mm

- Self suction height : 5.5 m

- Main usage:

1. Food Processing

2. Medicine

3.Chemical Industry

4. Environmental Protection

5.Water Treatment

6.Electroplate

7. Others

If you need other specifications or parameters of ZW series Self-priming Pumps, please contact us in detail.

Model	Flow(m3/h)	Head(m)	Power(KW)	Rotary speed(r/min)	Efficiency(%)	suction height(m)
ZW25-8-15	8	15	2.2	2900	45	2.0
ZW32-5-20	5	20	2.2	2900	45	2.5
ZW32-10-20	10	20	2.2	2900	45	2.5
ZW32-9-30	9	30	3	2900	48	2.5
ZW40-10-20	10	20	2.2	2900	45	2.5
ZW40-20-15	20	15	2.2	2900	45	2.5
ZW40-15-30	15	30	3	2900	48	2.5
ZW50-10-20	10	20	2.2	2900	45	2.5
ZW50-20-12	20	12	2.2	2900	45	2.5
ZW50-15-30	15	30	3	2900	48	2.5
ZW50-20-35	20	35	5.5	2900	48	2.5
ZW65-30-18	30	18	4	1450	45	2.5
ZW65-25-30	25	30	5.5	2900	50	3.0
ZW65-25-40	25	40	7.5	2900	50	3.0
ZW65-40-25	40	25	7.5	2900	50	3.0
ZW65-65-25	65	25	7.5	2900	52	3.0
ZW80-40-16	40	16	4	1450	50	3.0
ZW80-40-25	40	25	7.5	2900	50	3.0
ZW80-25-40	25	40	7.5	2900	50	3.0
ZW80-65-25	65	25	7.5	2900	52	3.0
ZW80-80-35	80	35	15	2900	45	3.0
ZW80-40-50	40	50	18.5	2900	50	3.0
ZW80-50-60	50	60	22	2900	55	3.0
ZW100-100-15	100	15	7.5	1450	50	4.0
ZW100-80-20	80	20	7.5	1450	53	4.0
ZW100-100-20	100	20	11	1450	53	4.0
ZW100-100-30	100	30	22	2900	53	4.0
ZW100-80-45	80	45	30	2900	55	4.0
ZW100-80-60	80	60	37	2900	53	4.0
ZW100-80-50	80	80	45	2900	50	4.0
ZW125-120-20	120	20	15	1450	55	4.5
ZW150-180-14	180	14	15	1450	60	5.0
ZW150-180-20	180	20	22	1450	60	5.0
ZW150-180-30	180	30	37	1450	65	5.0
ZW150-180-38	180	38	55	1450	45	5.0
ZW200-280-14	280	14	22	1450	65	5.0
ZW200-280-20	280	20	37	1450	62	5.0
ZW200-300-25	300	25	45	1450	59	5.0
ZW200-280-28	280	28	55	1450	55	4.8
ZW250-420-20	420	20	55	1450	61	6.0
ZW300-800-14	800	14	55	1450	65	6.0
