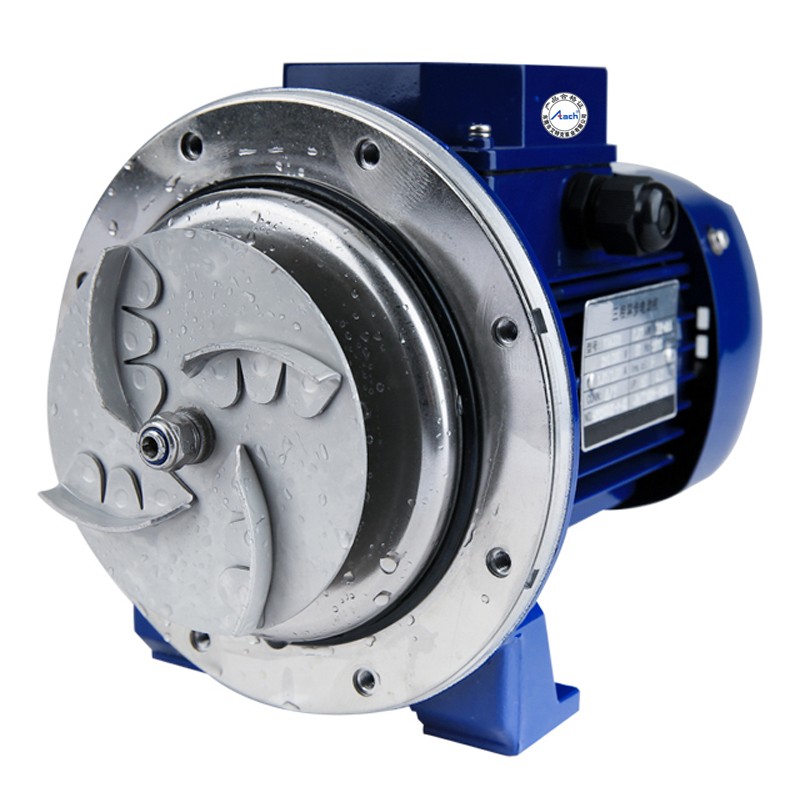

Horizontal Single Suction Stainless Steel Centrifugal Pump WB2-120/185

- Name of pump:Horizontal single suction stainless steel centrifugal pump

- Pump Type: Centrifugal Pump

- Pump model:WB2-120/185

- Pump brand: ATACH

-Installation Type: horizontal

- Impeller Quantity: 2 pcs

- Rated pump capacity: 7.2 m3/h

- Rated pump head: 40 m

- Power/speed: 1.85 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ/single phase/220V/50Hz
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: SUS304,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 32mm*25mm

- Suction head: 8 m

- APPLICATIONS:
This pump can be used at full head without overloading motor. The pumps are suitable for transporting clean water and light corrosive liquid, glycol solution and other liquid which must be allowed by dealer. The pumps can be applied on Industrial applications, domestic, washing, pool, and irrigation etc.Liquid temperature:-15ºC-+80ºC Max. working pressure:8bar

- Materials:
Casing,impeller,back cover and pump shaft: SUS304 material.

- Motor Data:
Speed:2900r/min
Insulation Class:F
Protection Class:IP55
Rating Power:0.55-3kW 0.75-4HP
Frequency:50Hz
Voltage:220V 380V
With overload protector in singal phase motor
Motor jacket/base/adapter:Aluminium
Ambient temperature range:-15ºC~+40ºC


If you need other specifications or parameters of WB series Micro stainless steel centrifugal pump, please contact us in detail.
