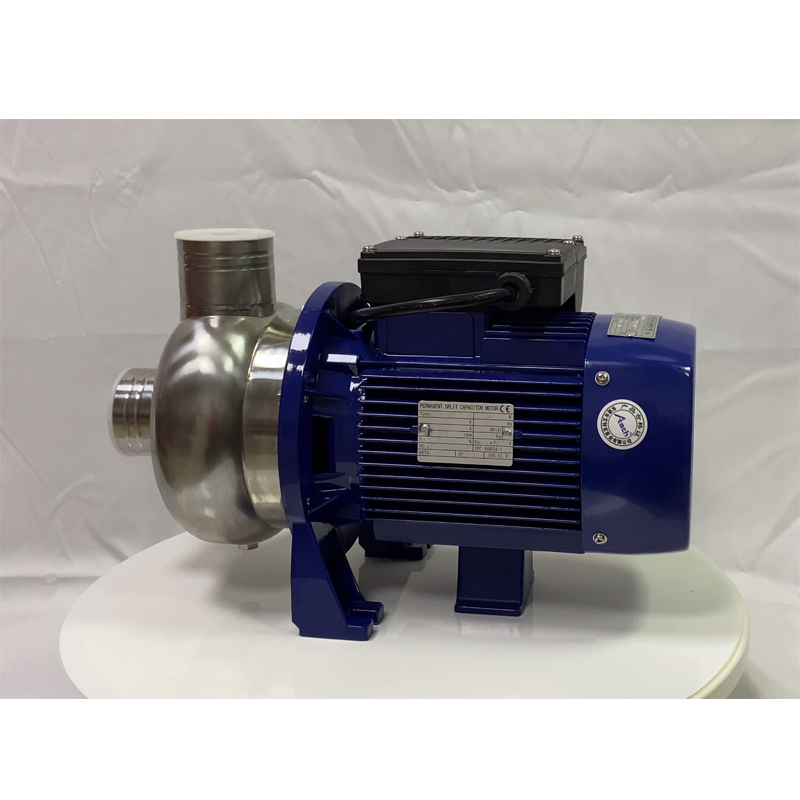

Atach End Suction Sea Water Pump with SUS316L Material BK200d

- Name of pump: Atach End Suction Sea Water Pump with SUS316L Material BK200D

- Pump Type: Centrifugal Pump

- Pump model: BK200D

- Pump brand: ATACH

-Installation Type: Horizontal Close-Coupled

- Impeller Quantity: 1 pcs

- Rated pump capacity: 200 m3/h

- Rated pump head: 32 m

- Power/speed: 30 Kw/1450 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: SUS304,SUS316,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 150mm*150mm

- NPSH: 2.5 m

- Main usage:can transfer hot water,Acid solution,Alkaline solution,waste water,chemical liquid,oil.
Often used in food processing, medicine,chemical industry, sewage treatment, electroplating, bleaching and dyeing, environmental protection.

If you need other specifications or parameters of BK series Centrifugal Pump, please contact us in detail.
