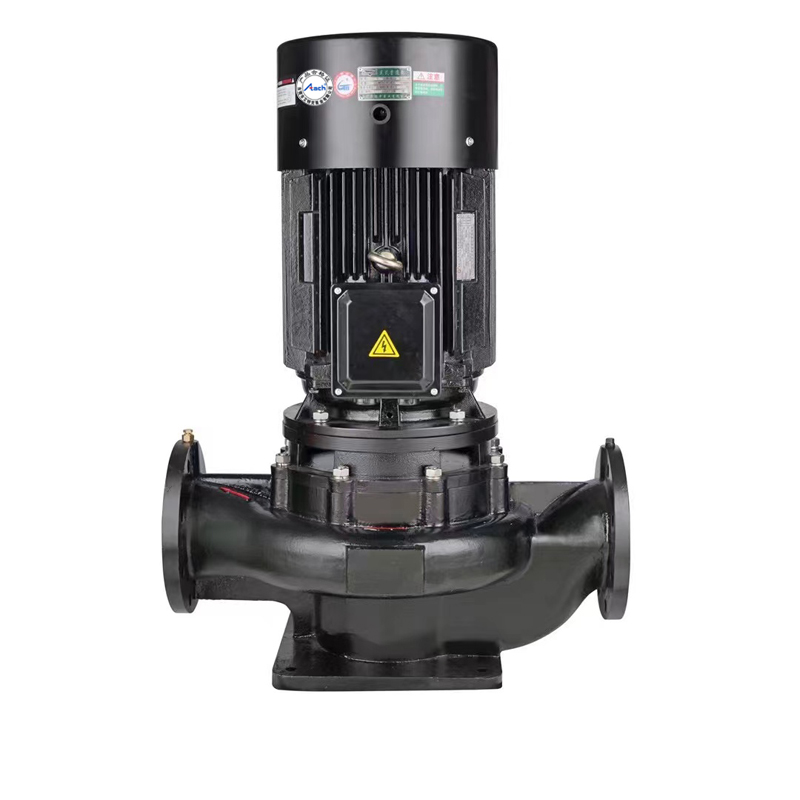

GD100-21 Stainless Steel Impeller & Shaft in Line Chilled Water Pump Price

- Name of pump:GD100-21 Stainless Steel Impeller & Shaft In Line Chilled Water Pump Price

- Pump Type: Pipeline Pump

- Pump model:GD100-21

- Pump brand: ATACH

-Installation Type: vertical Close-Coupled

- Impeller Quantity: 1 pcs

- Rated pump capacity: 60 m3/h

- Rated pump head: 21 m

- Power/speed: 5.5 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: Stainless Steel Impeller & Shaft ,Casing Cast Iron

- Shaft Seal: Mechanical seal

- Inlet / outlet : 100mm*100mm

- NPSH: 3  m

- Main usage:

If you need other specifications or parameters of GD series Line Pumps, please contact us in detail.
