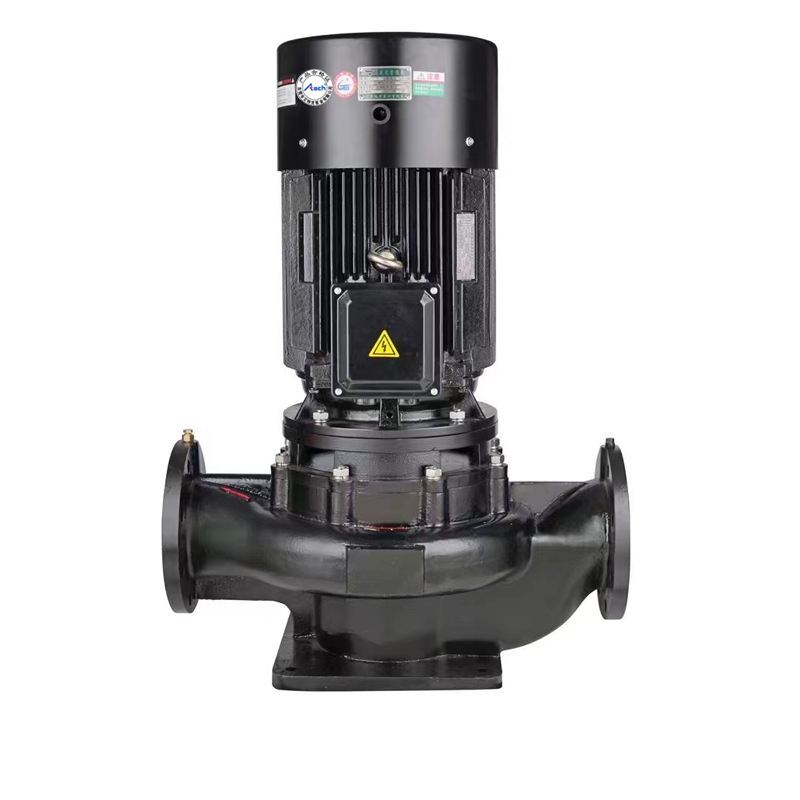

GD125-20 Stainless Steel Impeller & Shaft in Line Centrifugal Pump Isg/Irg/Grg/Ihg/Yg/Ihgy/Isgd

- Name of pump:GD125-20 Stainless Steel Impeller & Shaft In Line Centrifugal Pump

- Pump Type: Pipeline Pump

- Pump model:GD125-20

- Pump brand: ATACH

-Installation Type: vertical Close-Coupled

- Impeller Quantity: 1 pcs

- Rated pump capacity: 160 m3/h

- Rated pump head: 20 m

- Power/speed: 15 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: Stainless Steel Impeller & Shaft ,Casing Cast Iron

- Shaft Seal: Mechanical seal

- Inlet / outlet : 125mm*125mm

- NPSH: 5  m

- Main usage:

If you need other specifications or parameters of GD series Line Pumps, please contact us in detail.
