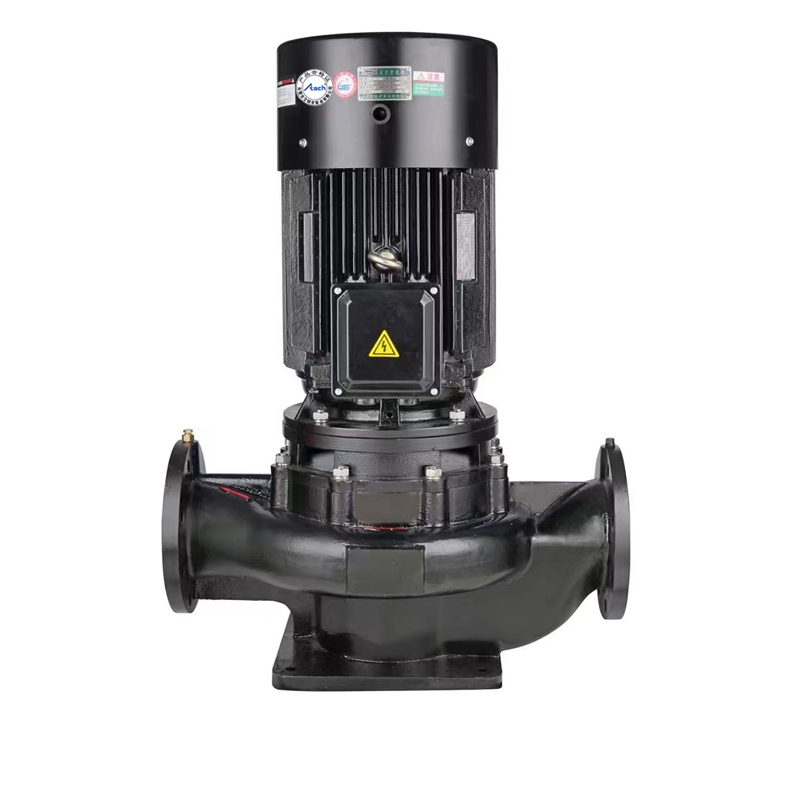

- Name of pump: GD65-50 Stainless Steel Impeller & Shaft Vertical Water Pump For Air Conditioning Frozen Water Circulation
- Pump Type: Pipeline Pump
- Pump model: GD65-50
- Pump brand: ATACH
-Installation Type: vertical Close-Coupled
- Impeller Quantity: 1 pcs
- Rated pump capacity: 25 m3/h
- Rated pump head: 50 m
- Power/speed: 7.5 Kw/2900 r.p.m
- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )
- Material Supply: Stainless Steel Impeller & Shaft ,Casing Cast Iron
- Shaft Seal: Mechanical seal
- Inlet / outlet : 65mm*65mm
- NPSH: 3.5 m
- Main usage:
GD, GDB, GDR-Type pipeline centrifugal pump
Application and characteristics:
Pipeline centrifugal pump is directly installed in the pipeline, and pressurizes the delivered medium. Pipeline centrifugal pumps produced by this factory have small volume, light weight and compact structure. They can be operated in single unit or connected in series (based on working pressure of the pump), and can be installed and used in a horizontal or vertical way.
GD-type pump is single-stage single-suction centrifugal pump, for delivering clear water under normal temperature or medium with physical and chemical properties similar to clear water's. They are mainly used in refrigerating, and air-conditioning system, cooling tower, garden fountain, fire-fighting and general water supply system.
Please select GDR hot water pipeline pump if the medium temperature is over 80° C, and select GDF type corrosion resistance pipeline pump under corrosive circumstances.

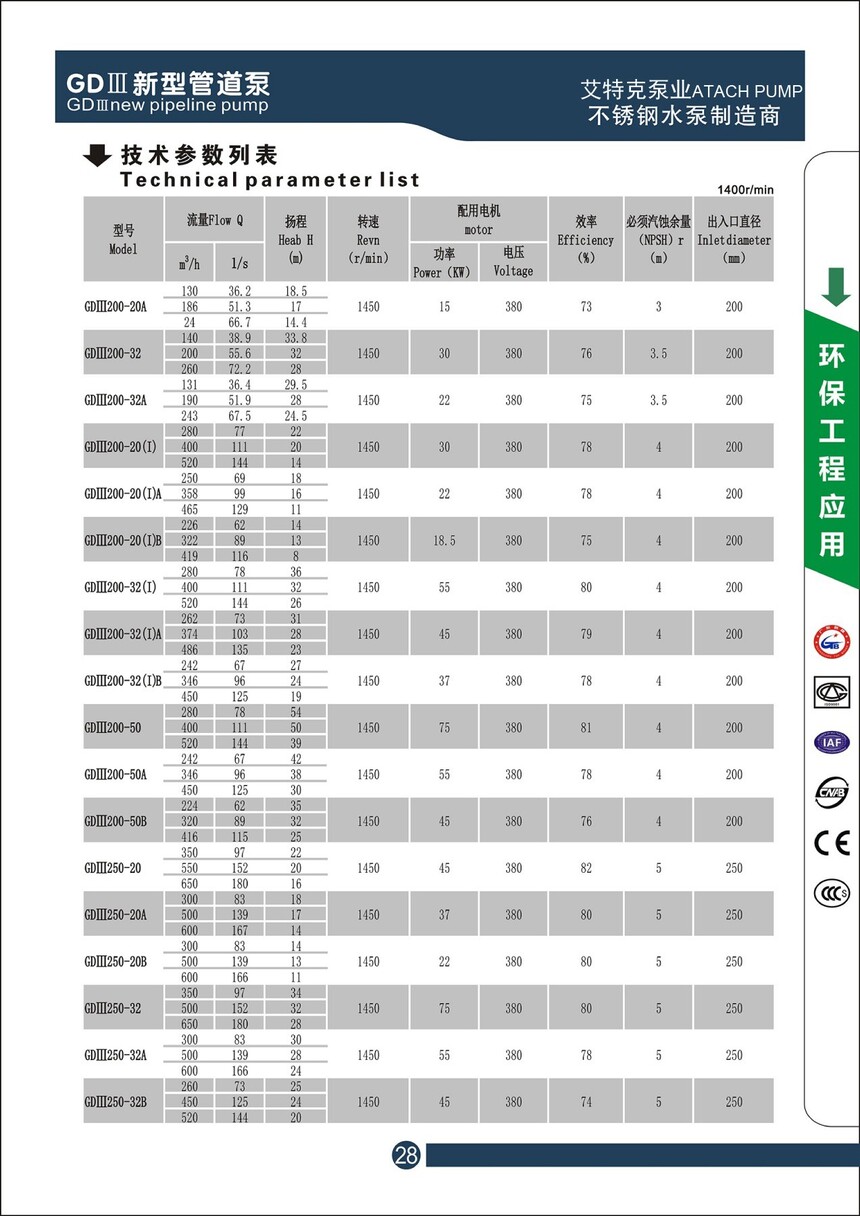

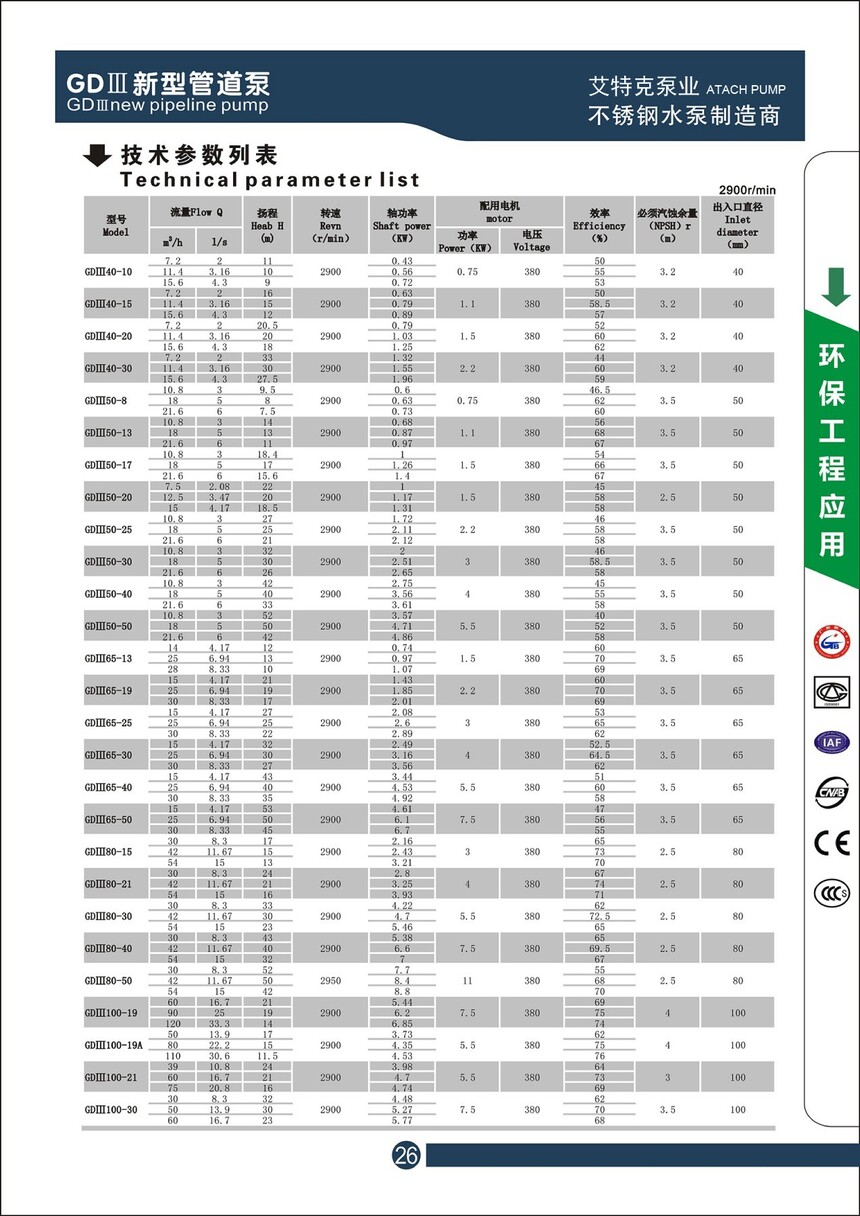

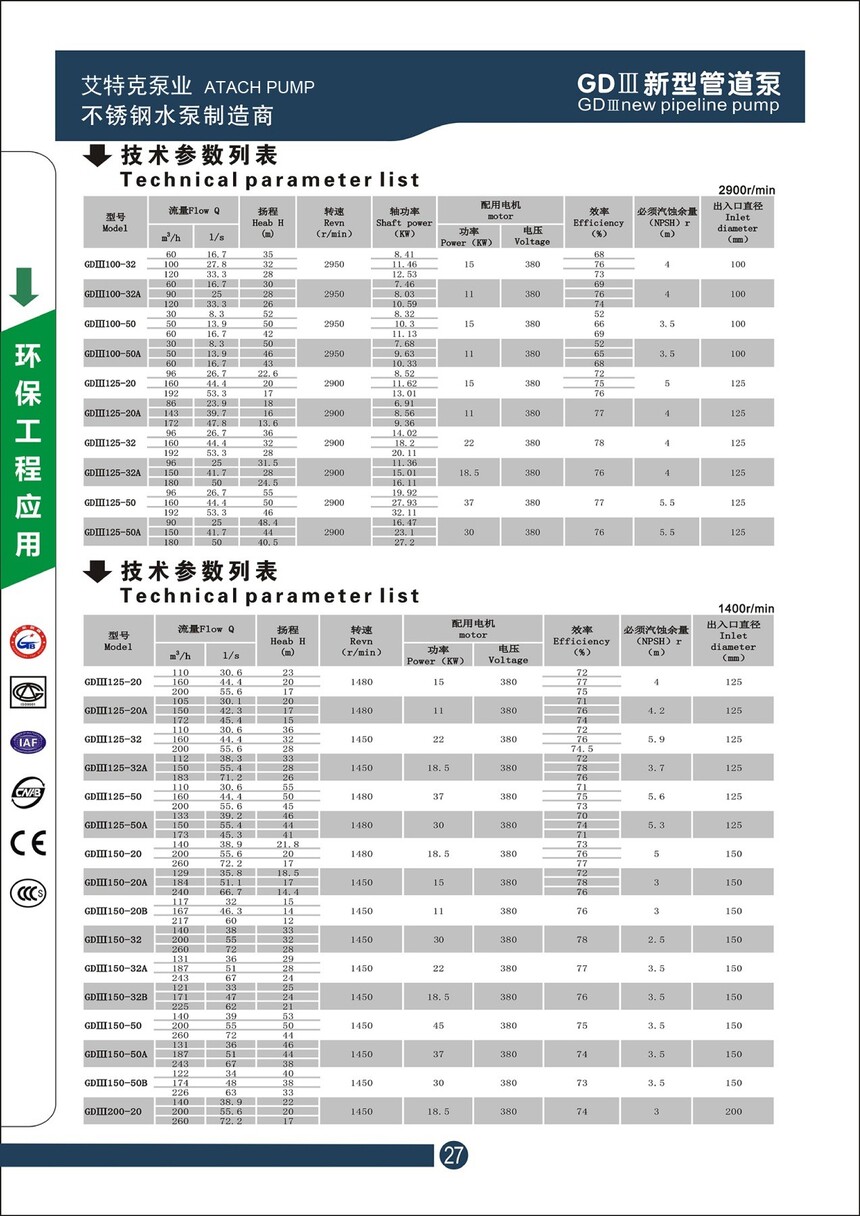

If you need other specifications or parameters of GD series Line Pumps, please contact us in detail.
