OEM Factory Wholesale Stainless Steel Single Stage Single Suction Vertical Pipeline Centrifugal High Pressure Large Flow Chemical Pump GD40-15

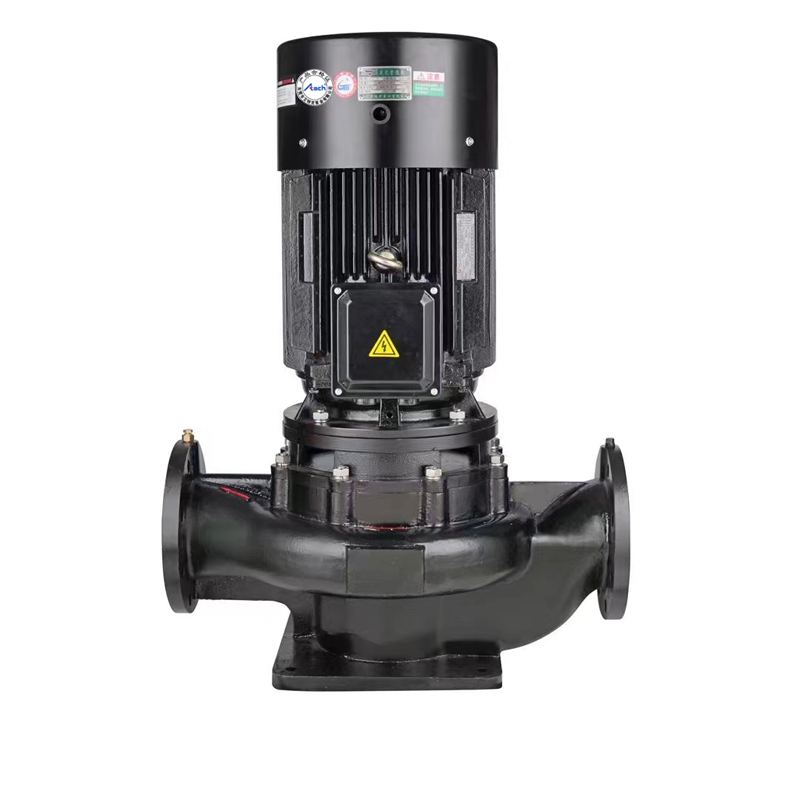

- Name of pump: Vertical Pipeline Centrifugal Pump

- Pump Type: Pipeline Pump

- Pump model: GD40-15

- Pump brand: ATACH

-Installation Type: vertical Close-Coupled

- Impeller Quantity: 1 pcs

- Rated pump capacity: 11.4 m3/h

- Rated pump head: 15 m

- Power/speed: 1.1 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: Cast Iron

- Shaft Seal: Mechanical seal

- Inlet / outlet : 40mm*40mm

- NPSH: 3.2  m

- Main usage:

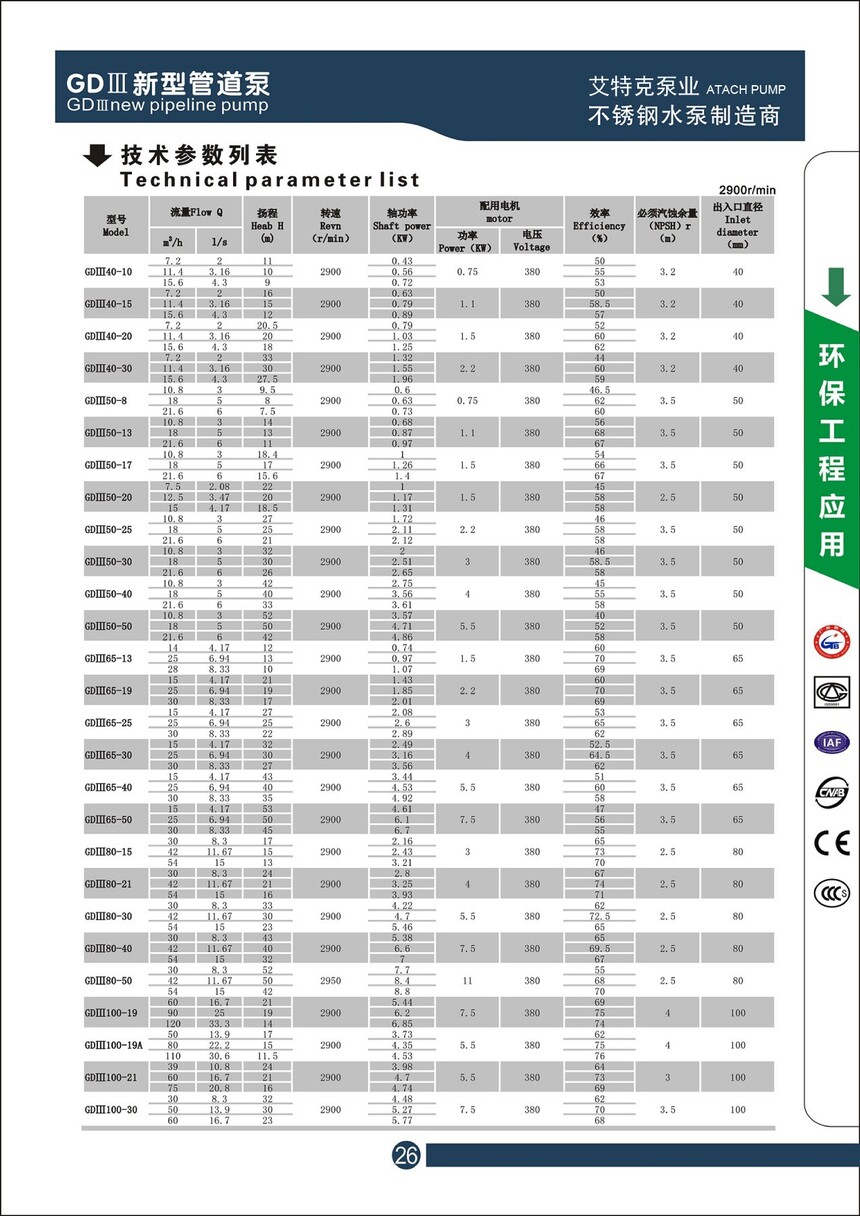

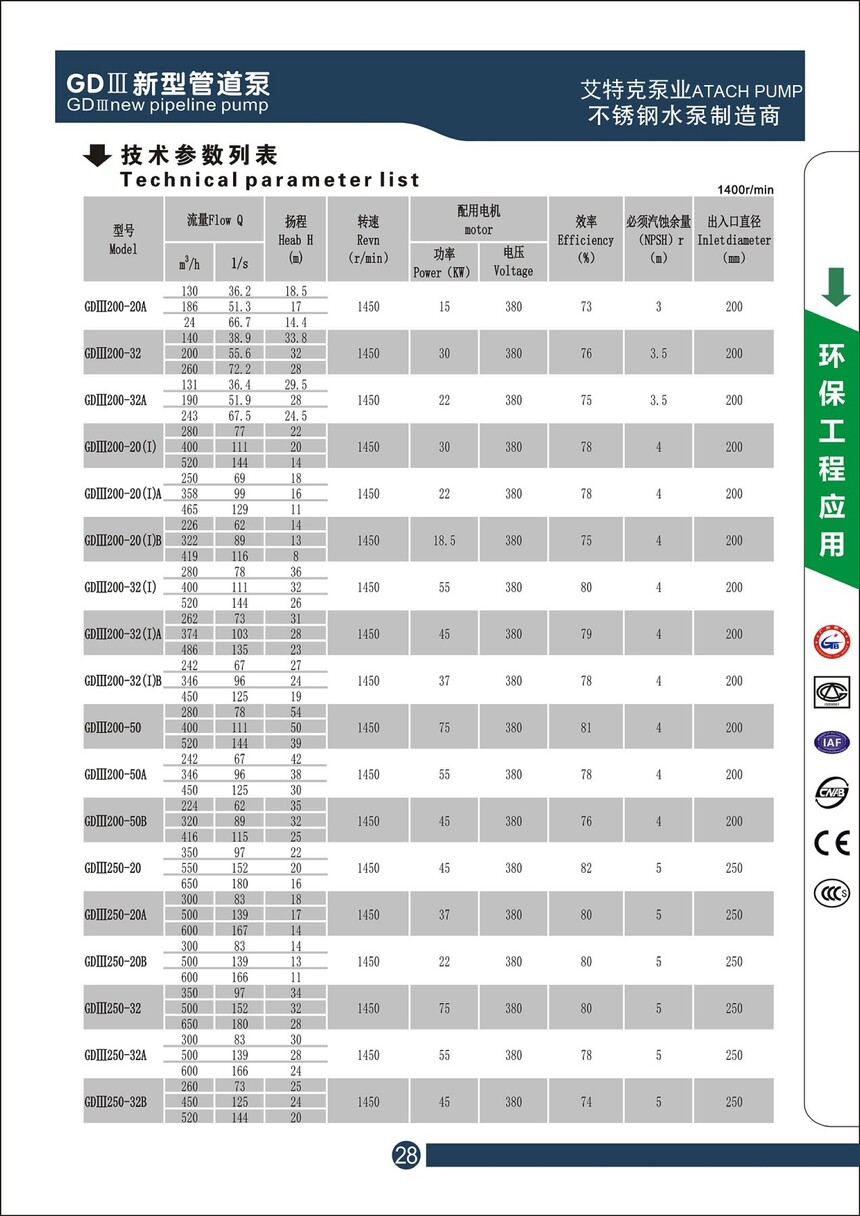

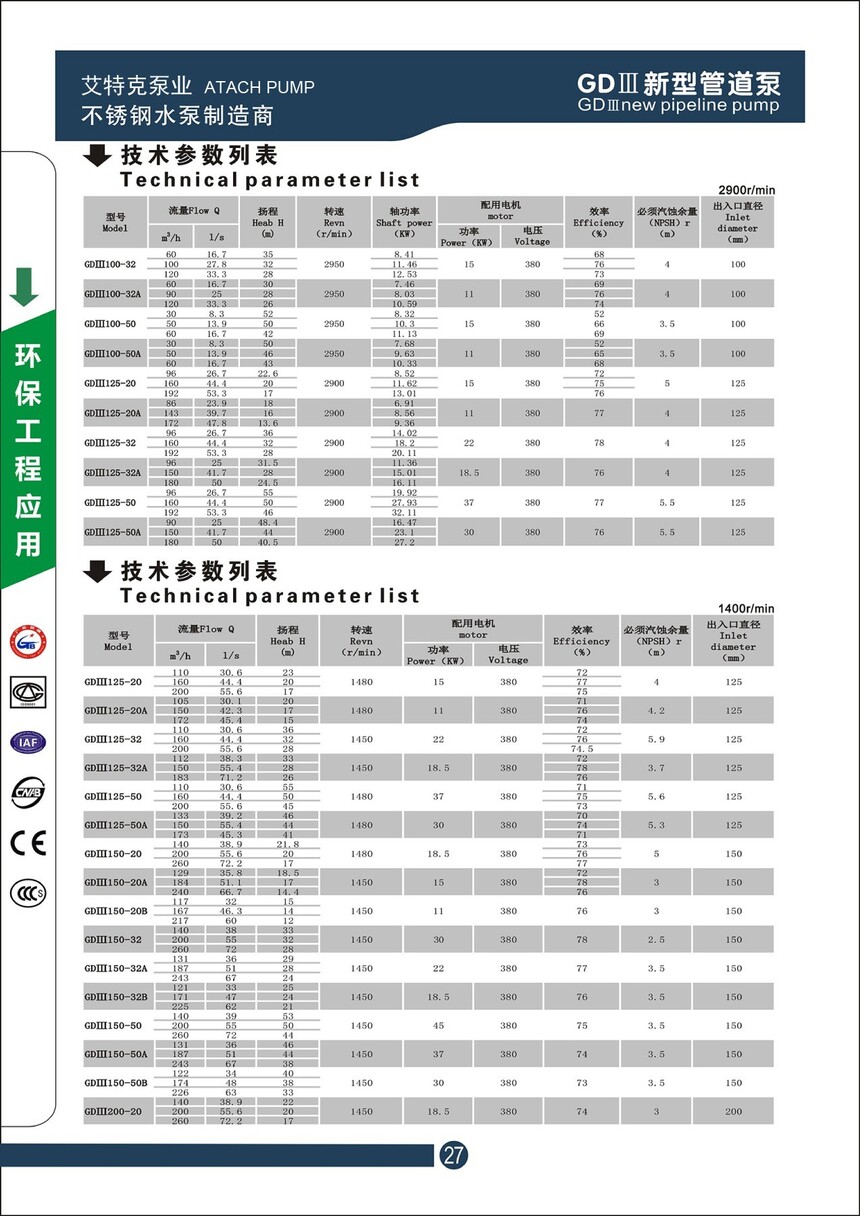

If you need other specifications or parameters of GD series Pipeline Pumps, please contact us in detail.
