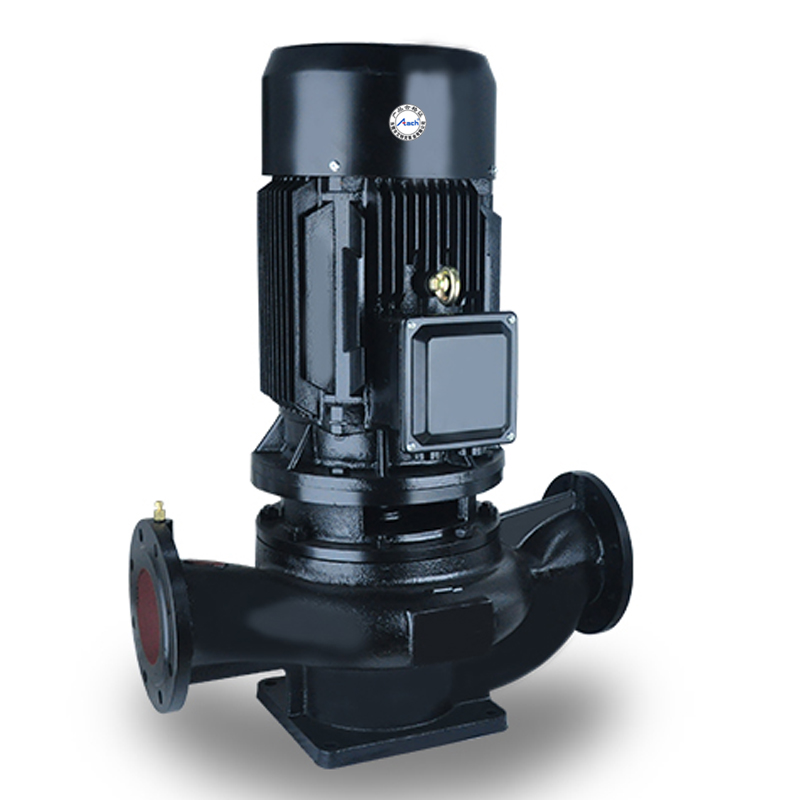

GD50-25 Vertical Inline Centrifugal Pump for Air Conditioning Cooling Water Circulation

- Name of pump: Vertical inline centrifugal pump for air conditioning cooling water circulation

- Pump Type: Inline Pump

- Pump model:GD50-25

- Pump brand: ATACH

-Installation Type: vertical Close-Coupled

- Impeller Quantity: 1 pcs

- Rated pump capacity: 18 m3/h

- Rated pump head: 25 m

- Power/speed: 2.2 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: Cast Iron

- Shaft Seal: Mechanical seal

- Inlet / outlet : 50mm*50mm

- NPSH: 3.5  m

- Main usage:

If you need other specifications or parameters of GD series vertical inline Pump, please contact us in detail.
