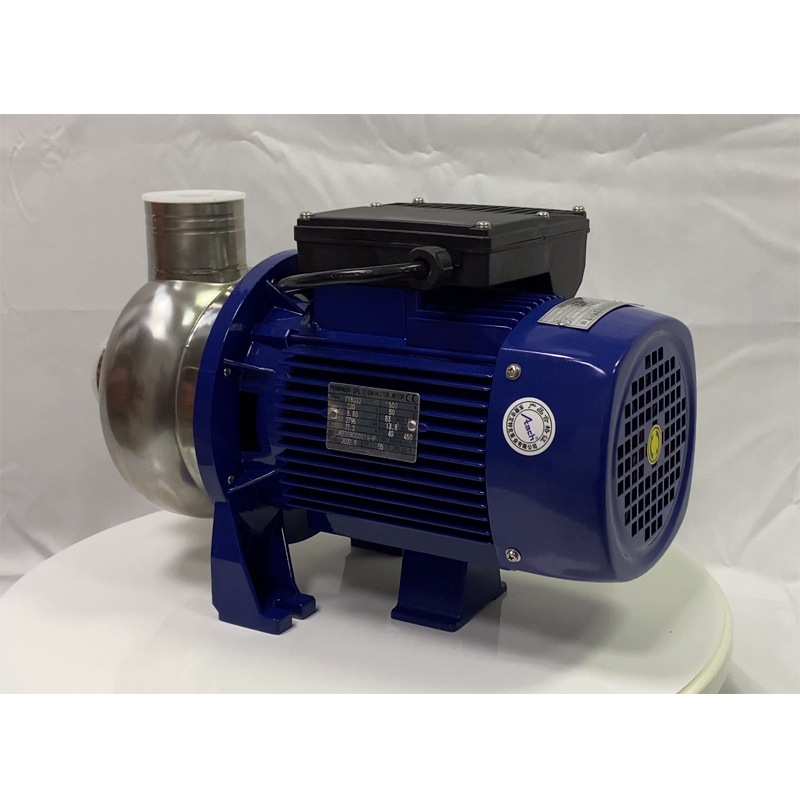

Atach Stainless Steel Centrifugal High Temperature Wear Resistant Chemical Pump BK120/close coupled pump/ pump shaft and motor shaft are the same shaft/monoblock pump

- Name of pump:Atach Stainless Steel Centrifugal High Temperature Wear Resistant Chemical Pump

- Pump Type: Centrifugal Pump

- Pump model: BK120

- Pump brand: ATACH

-Installation Type: Horizontal Coupling

- Impeller Quantity: 1 pcs

- Rated pump capacity: 45 m3/h

- Rated pump head: 22 m

- Power/speed: 5.5 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: SUS304,SUS316,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 80mm*50mm

- NPSH: 3.5  m

- Main usage:

If you need other specifications or parameters of BK series wear resistant  pump, please contact us in detail.
