Atach End Suction Stainless Steel Centrifugal Pump BB250-550d/AISI304 centrifugal pump/AISI 316L centrifugal pump/AISI 316 centrifugal pump

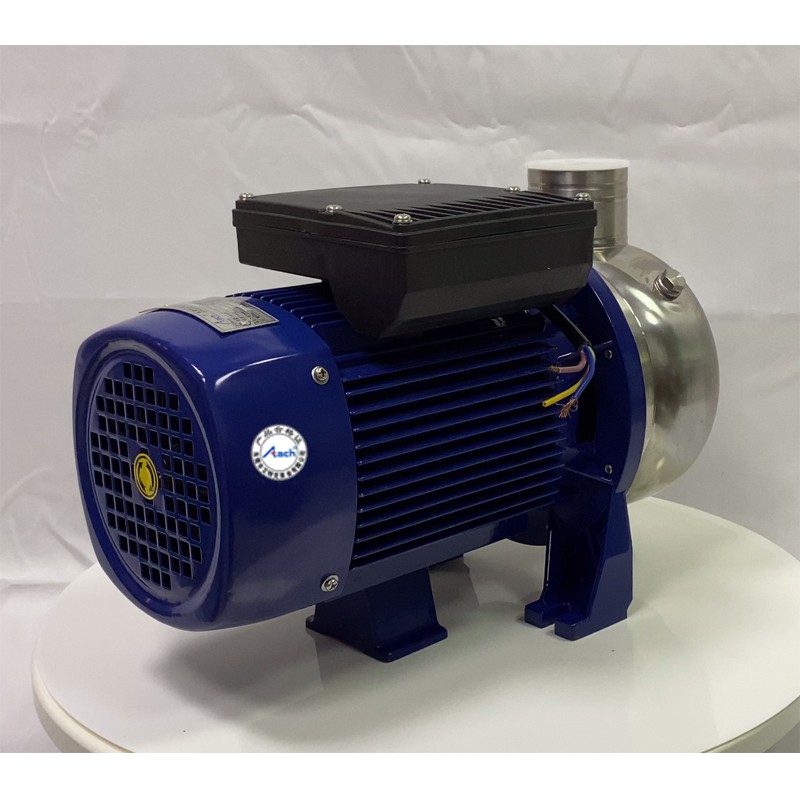

- Name of pump: Atach End Suction Stainless Steel Centrifugal Pump BB250-550D

- Pump Type: Centrifugal Pump

- Pump model: BB250-550D

- Pump brand: ATACH

-Installation Type: Horizontal Coupling

- Impeller Quantity: 1 pcs

- Rated pump capacity: 19 m3/h

- Rated pump head: 22 m

- Power/speed: 2.2 Kw/2900 r.p.m

- Power supply:Single phase/220V/50HZ, 3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: SUS304,SUS316,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 50mm*40mm

- NPSH: 3.5  m

- Main usage:

If you need other specifications or parameters of BB series Centrifugal Pumps, please contact us in detail.
