25GDL2-12*7 Vertical Multistage Pipeline Water Pump End suction pumps SS304/seawater pumps SS316/self-priming pumps SS316L

No price
Collect
  • DETAILS

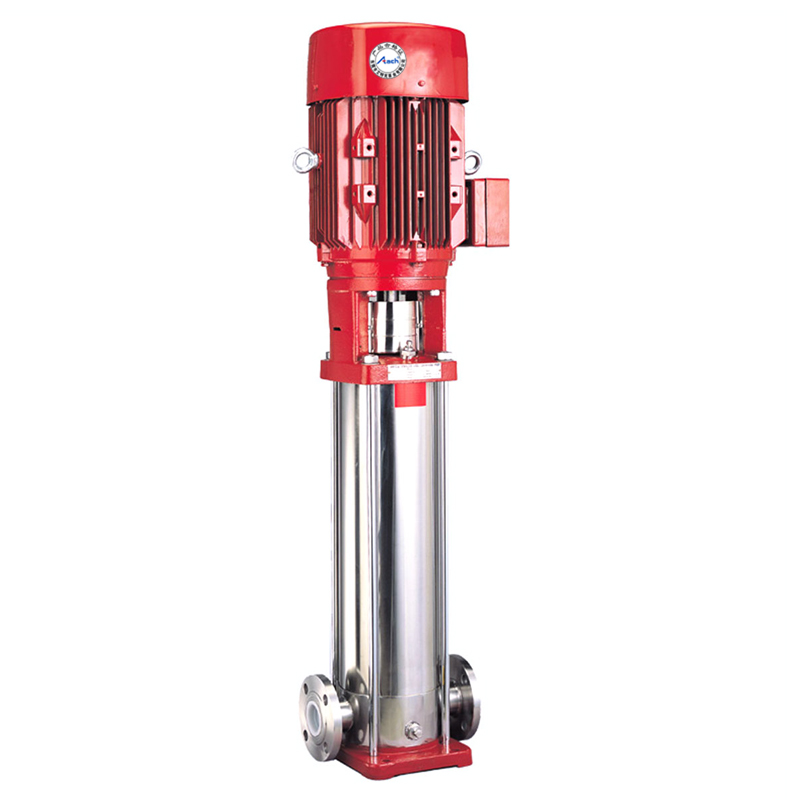

DL 4.JPG


- Name of pump: vertical multistage pipeline water pump

- Pump Type: pipeline Pump

- Pump model: 25gdl2-12*7

- Pump brand: ATACH

-Installation Type: vertical coupling

- Impeller Quantity: 7 pcs

- Rated pump capacity: 2 m3/h

- Rated pump head: 84 m

- Power/speed: 2.2 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: Cast Iron,Pump body sleeve is stainless steel

- Shaft Seal: Mechanical seal

- Inlet / outlet : 25mm*25mm

- NPSH: 1.7  m

If you need other specifications or parameters of GDL series pipeline Pumps, please contact us in detail.



ModelFlow (m3/h)Head(m)Motor Speed(r/min)Efficiency %Motor Power(hp)Required NPSH(NPSH)r(m)In*Outlet size(mm)Weight(Kg)
25GDL2-12*32362900301.51.72551
25GDL2-12*42482900301.51.72552
25GDL2-12*526029003021.72557
25GDL2-12*627229003021.72559
25GDL2-12*728429003031.72563
25GDL2-12*829629003031.72565
25GDL2-12*9210829003031.72567
25GDL2-12*10212029003041.72583
25GDL2-12*11213229003041.72584
25GDL2-12*12214429003041.72585
25GDL4-11*34332900401.51.72551
25GDL4-11*444429004021.72556
25GDL4-11*545529004031.72561
25GDL4-11*646629004031.72562
25GDL4-11*747729004041.72575
25GDL4-11*848829004041.72578
25GDL4-11*949929004041.72580
25GDL4-11*1041102900405.51.72589
25GDL4-11*1141212900405.51.72590
25GDL4-11*1241322900405.51.72591
25GDL4-11*1341432900407.51.725113
25GDL4-11*1441542900407.51.725114
25GDL4-11*1541652900407.51.725115
40GDL6-12*363629005221.74063
40GDL6-12*464829005231.74067
40GDL6-12*566029005231.74068
40GDL6-12*667229005241.74083
40GDL6-12*768429005241.74084
40GDL6-12*86962900525.51.74097
40GDL6-12*961082900525.51.74098
40GDL6-12*1061202900525.51.74099
40GDL6-12*1161322900527.51.740118
40GDL6-12*1261442900527.51.740119
50GDL12-15*2123029005631.850122
50GDL12-15*3124529005641.850151
50GDL12-15*412602900565.51.850169
