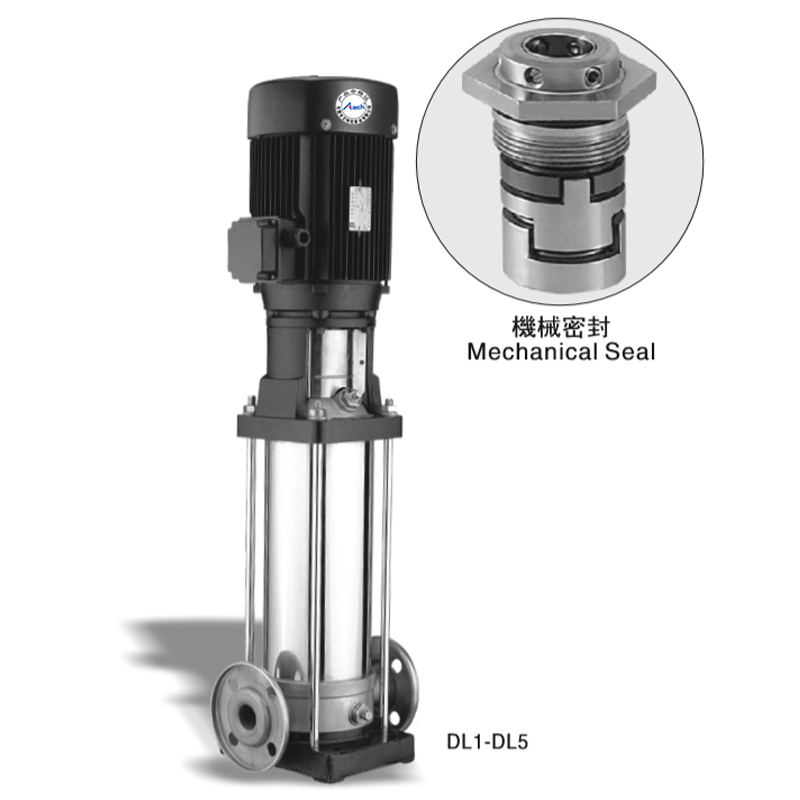

Stainless Steel Electric Inline Pump DL4-150 Monoblock Pump/ Centrifugal Pump/BSP & Tri-Clamp pump

- Name of pump:Stainless steel electric inline pump

- Pump Type: Centrifugal Pump

- Pump model:DL4-150

- Pump brand: ATACH

-Installation Type: vertical coupling

- Impeller Quantity: 15 pcs

- Rated pump capacity: 4 m3/h

- Rated pump head: 120 m

- Power/speed: 3 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: SUS304,SUS316,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 32mm*32mm

- NPSH: /

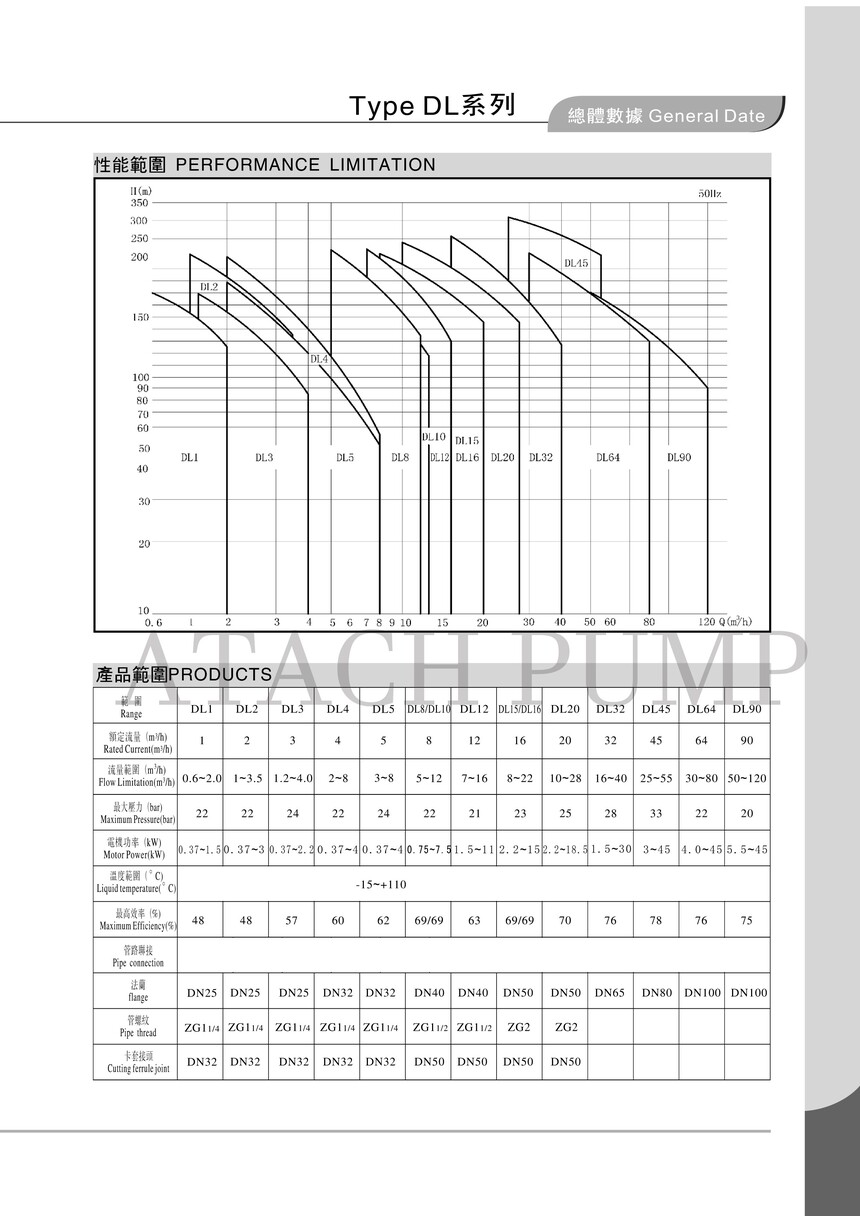

If you need other specifications or parameters of DL series multistage centrifugal pump, please contact us in detail.
