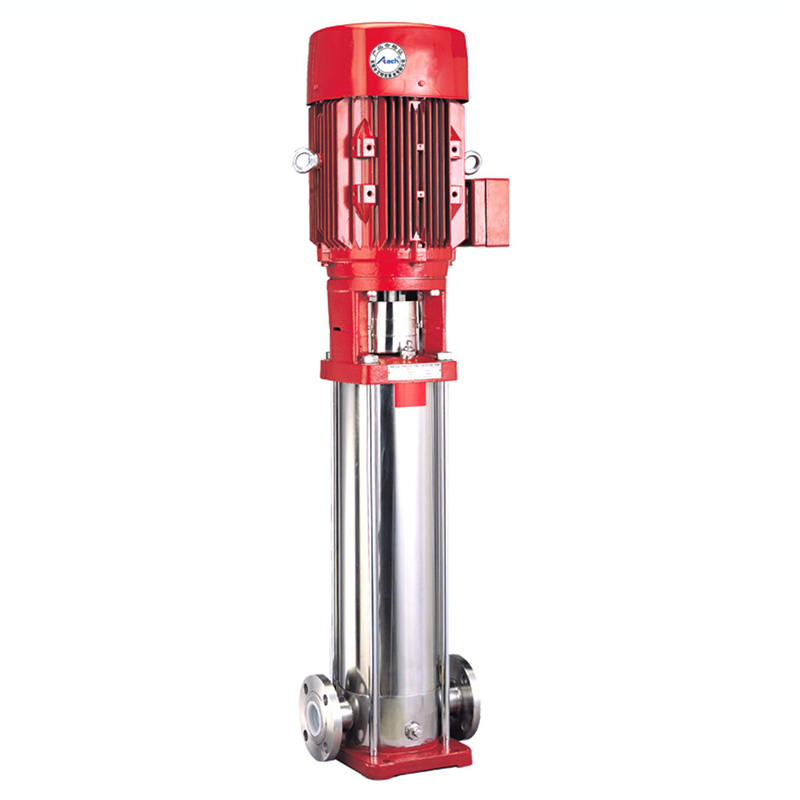

High Pressure Inline Pump DL3-170 chemical pump/surface pump/Waste water pump

- Name of pump:High pressure inline pump

- Pump Type: Centrifugal Pump

- Pump model:DL3-170

- Pump brand: ATACH

-Installation Type: vertical coupling

- Impeller Quantity: 17 pcs

- Rated pump capacity: 3 m3/h

- Rated pump head: 81 m

- Power/speed: 1.5 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: SUS304,SUS316,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 25mm*25mm

- NPSH: /

If you need other specifications or parameters of DL series multistage centrifugal pump, please contact us in detail.
