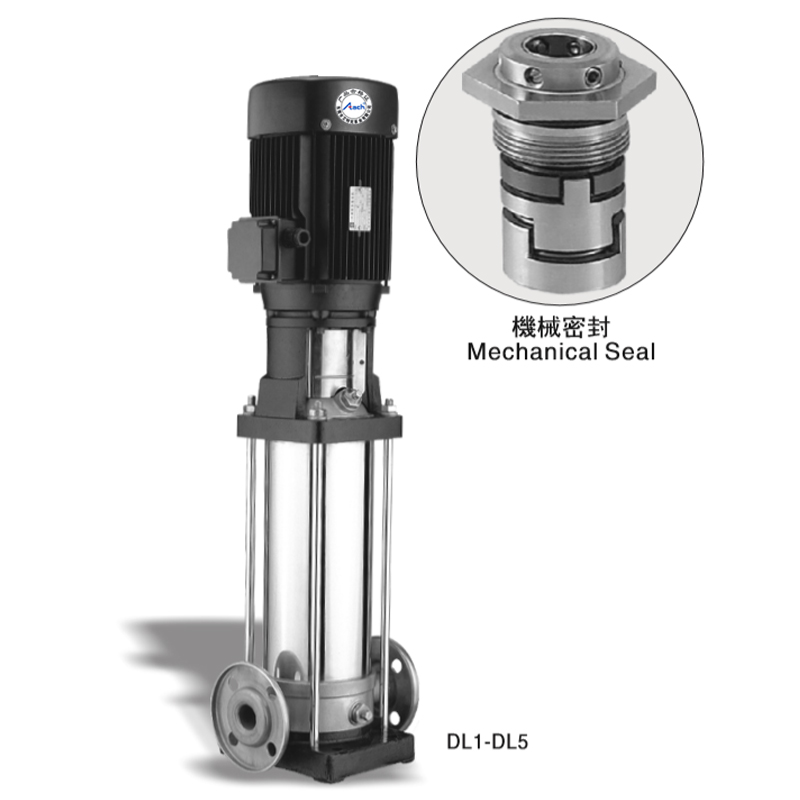

DL8-80 Stamping Process Multistage Water Pumps Centrifugal Type AISI316 chemical pump/surface pump/Waste water pump

- Name of pump: DL8-80 Stamping process multistage water pumps centrifugal type AISI316

- Pump Type: Centrifugal Pump

- Pump model: DL8-80

- Pump brand: ATACH

-Installation Type: vertical coupling

- Impeller Quantity: 8 pcs

- Rated pump capacity: 8 m3/h

- Rated pump head: 73 m

- Power/speed: 3 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: Cast Iron,SUS304,SUS316,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 40mm*40mm


If you need other specifications or parameters of DL series Centrifugal Pumps, please contact us in detail.
