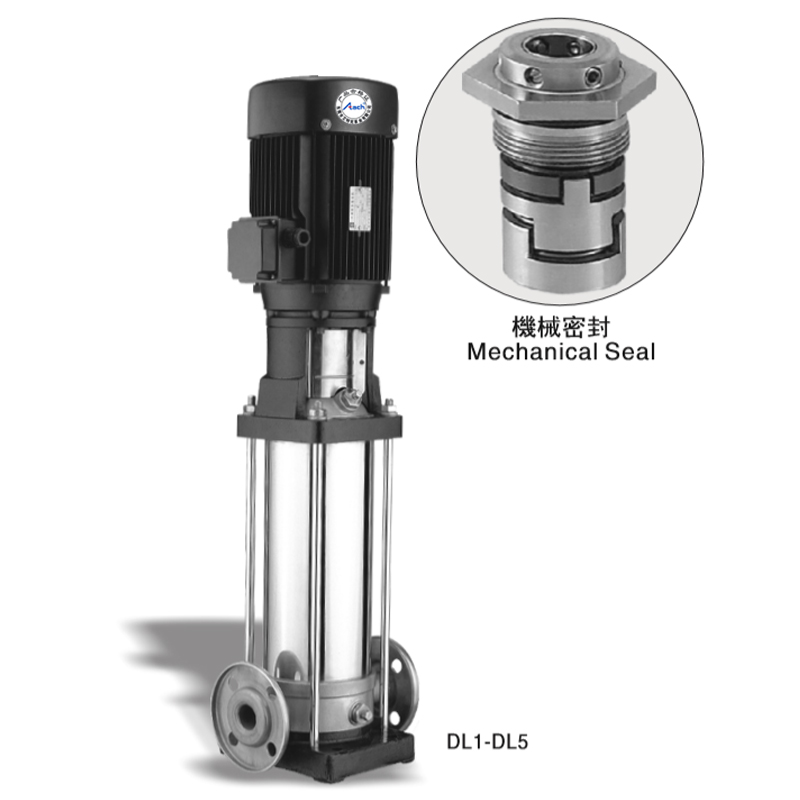

DL8-130 Stamping Process Multistage Water Pumps SUS304 High Temperature chemical pump/surface pump/end suction pump

- Name of pump:DL8-130 Stamping process multistage water pumps SUS304 high temperature

- Pump Type: Centrifugal Pump

- Pump model:DL8-130

- Pump brand: ATACH

-Installation Type: vertical coupling

- Impeller Quantity: 13 pcs

- Rated pump capacity: 8 m3/h

- Rated pump head: 121 m

- Power/speed: 5.5 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: Cast Iron,SUS304,SUS316,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 40mm*40mm

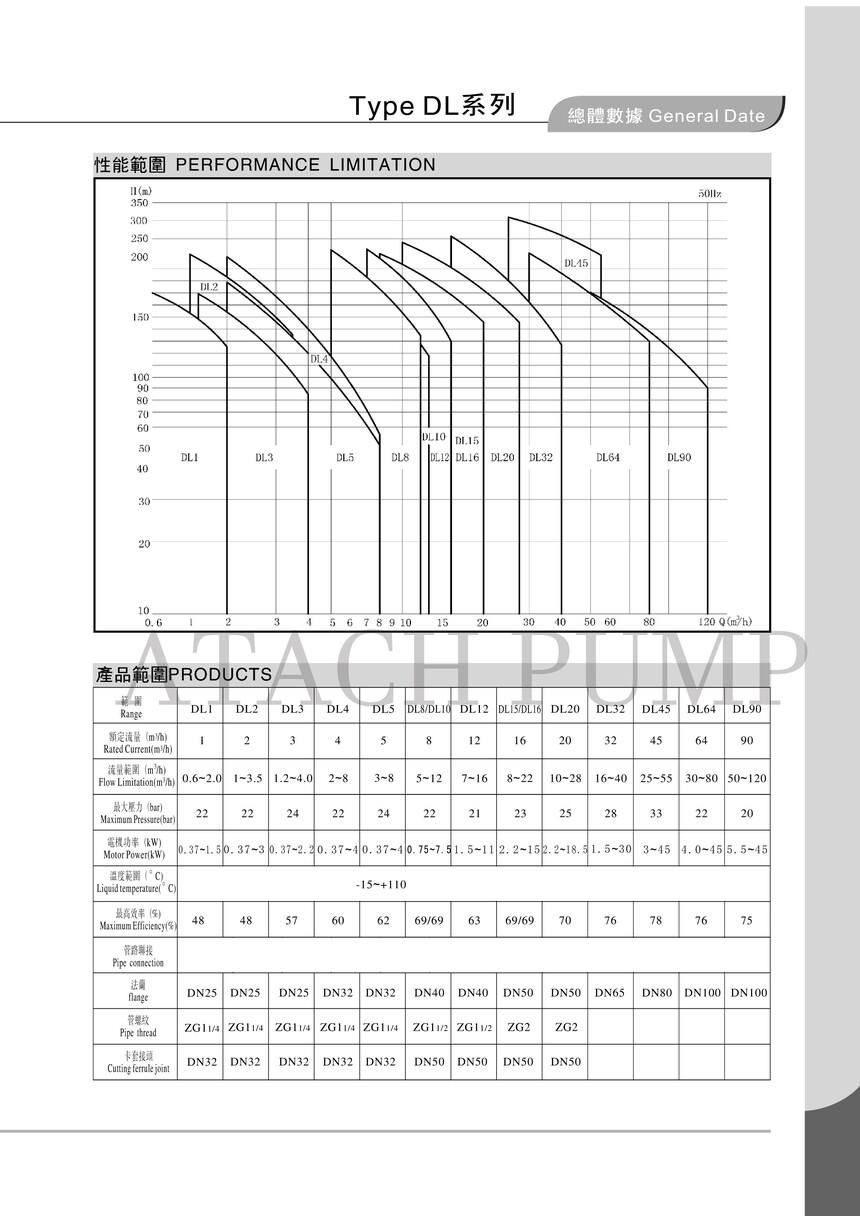

If you need other specifications or parameters of DL series Centrifugal Pumps, please contact us in detail.
