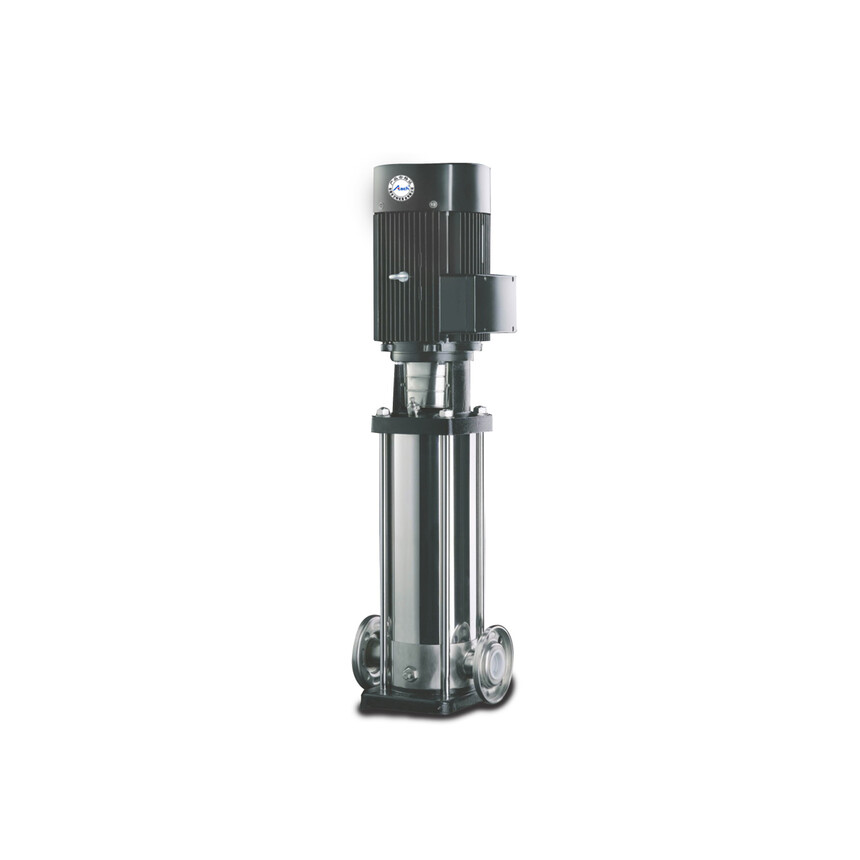

- Name of pump: Atach High Pressure Vertical Multistage Centrifugal Pump Booster Pressure Pump Set Fire Fighting Pump DL64-200
- Pump Type: Centrifugal Pump
- Pump model: DL64-200
- Pump brand: ATACH
-Installation Type: vertical coupling
- Impeller Quantity: 20 pcs
- Rated pump capacity: 64m3/h
- Rated pump head: 190 m
- Power/speed: 45Kw/2900 r.p.m
- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )
- Material Supply: Cast Iron,SUS304,SUS316,SUS316L
- Shaft Seal: Mechanical seal
- Inlet / outlet : 32mm*32mm

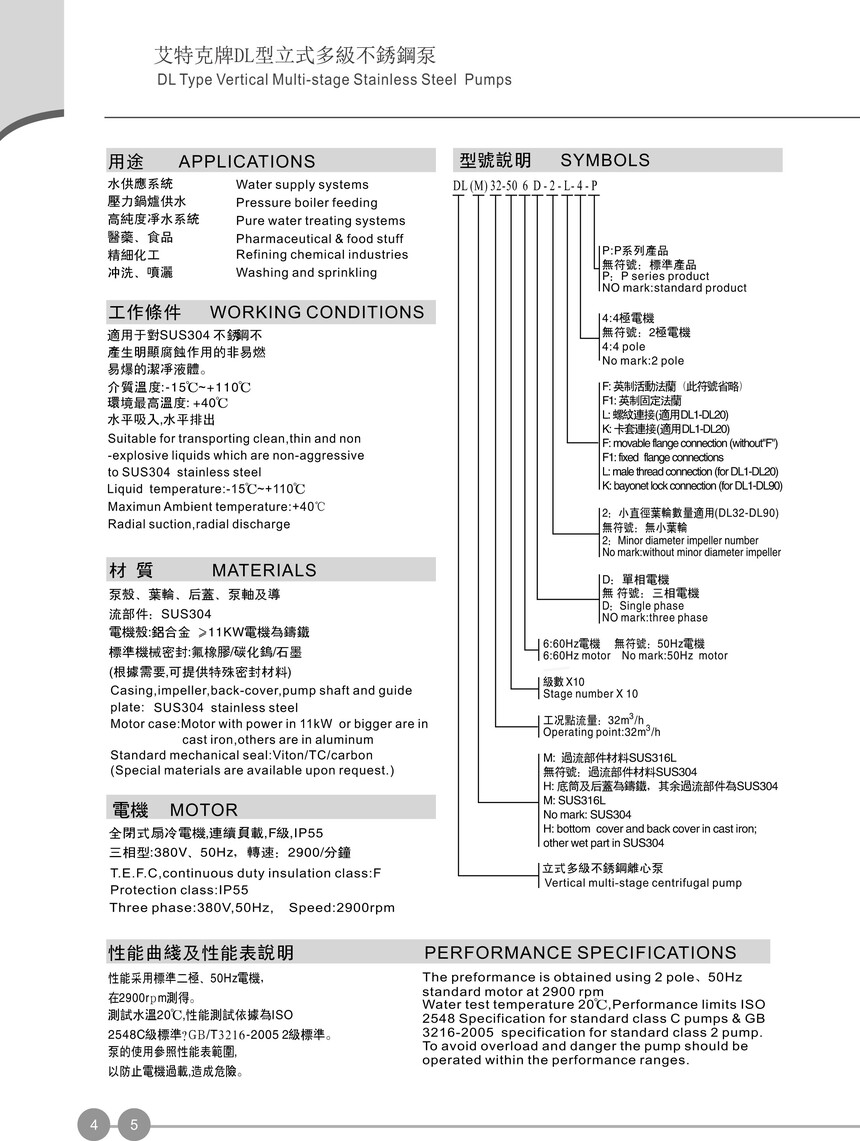

APPLICATIONS:
Water supply systems
Pressure boiler feeding
Pure water treating systems
Pharmaceutical & food stuff
Refining chemical industries
Washing and sprinkling
WORKING CONDITIONS:
Suitable for transporting clean,thin and non -explosive liquids which are non-aggressive to SUS304 stainless steel
Liquid temperature:-15ºC~+110ºC
Maximun Ambient temperature:+40ºC
Radial suction,radial discharge
MATERIALS:
Casing,impeller,back-cover,pump shaft and guide plate: SUS304 stainless steel
Motor case:Motor with power in 11kW or bigger are in cast iron,others are in aluminum Standard mechanical seal:Viton/TC/carbon (Special materials are available upon request.)
MOTOR:
T.E.F.C,continuous duty insulation class:F Protection class:IP55
Three phase:380V,50Hz, Speed:2900rpm
If you need other specifications or parameters of DL series Stainless steel multistage pump, please contact us in detail.
Dongguan Atach Pump Co., Ltd. is located in Dongguan City, Guangdong Province, which is a famous manufacturing city in mainland China. It was founded by Dongguan Industrial Pump General Factory with more than 40 years′industrial foundation, Indonesian partners and Taiwan partners. It is committed to providing customers with medium and high quality pumping and related solutions(Especially for high pressure pumps, high temperature pumps, high corrosion resistant pumps and other special customized pumps, we are in the forefront of water pump plants in mainland China. ).
The company′s leading products are stainless steel anti-corrosion pumps, fluorine-lined chemical pumps, pipeline centrifugal pumps, self-priming clean water pumps, Self-priming sewage pumps, stainless steel vertical multi-stage pumps, coaxial eddy current pumps, cantilever centrifugal pumps, horizontal multi-stage pumps, single-stage double suction pumps, water ring vacuum pumps, submersible sewage pumps, hot oil pumps, etc. The products are mainly suitable for dyeing and finishing, washing, chemical industry, food, environmental protection, air conditioning cycle, high-rise building pressurization, machinery plant equipment matching and so on.
