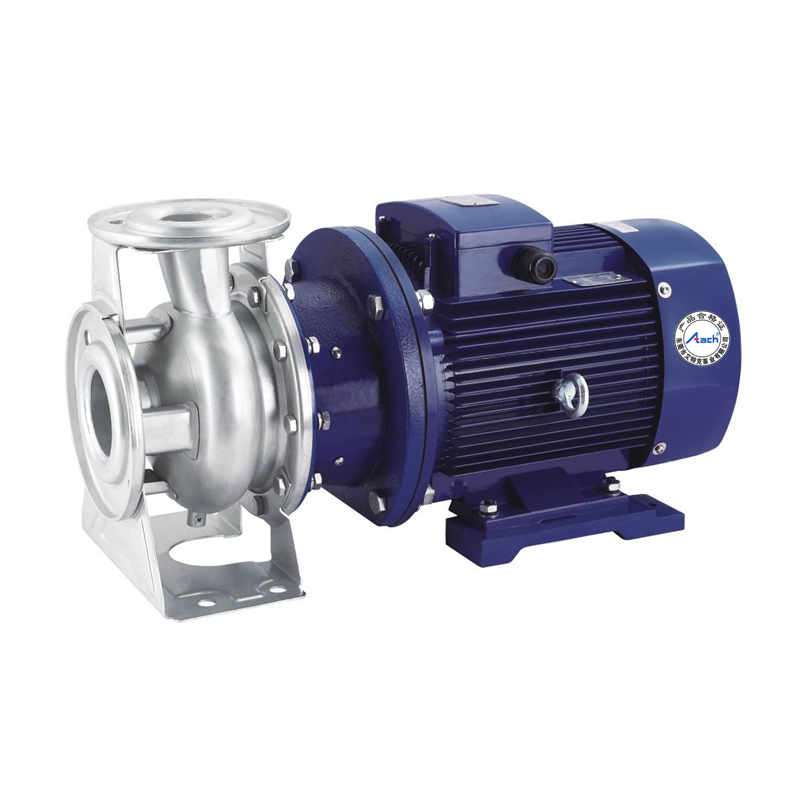

- Name of pump: Atach centrifugal water pump for refining chemical industries DZAS50-32-125
- Pump Type: Centrifugal Pump
- Pump model: DZAS50-32-125
- Pump brand: ATACH
-Installation Type: horizontal
- Impeller Quantity: 1 pcs
- Rated pump capacity: 12.5 m3/h
- Rated pump head: 32m
- Power/speed: 2.2 Kw/2900 r.p.m
- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )
- Material Supply: SUS304,SUS316L
- Shaft Seal: Mechanical seal
- Inlet / outlet : 65mm*40mm
- NPSH: 2 m
- Application:
The pumps are suitable for transporting to stainless steel SUS304 or SUS316.clean media which are non-aggressive
- Mainly applied on:
Water supply systems
Pressure boiler feeding
Pure water treating systems
Refining chemical industries
Washing and sprinkling
- Preformance limits:
Max. Working pressure: 10bar
To avoid overload and danger the pump should be operated within the performance ranges.Media temperature:
With NBR/ceramic/carbon:-20ºC-+80ºC
With Viton/ceramic/carbon:-20ºC-+110ºC
With EPR/ceramic/carbon:-20ºC-+110ºC
If you need other specifications or parameters of DZAS series Stainless steel centrifugal pump, please contact us in detail.
Dongguan Atach Pump Co., Ltd. is located in Dongguan City, Guangdong Province, which is a famous manufacturing city in mainland China. It was founded by Dongguan Industrial Pump General Factory with more than 40 years′industrial foundation, Indonesian partners and Taiwan partners. It is committed to providing customers with medium and high quality pumping and related solutions(Especially for high pressure pumps, high temperature pumps, high corrosion resistant pumps and other special customized pumps, we are in the forefront of water pump plants in mainland China. ).
The company′s leading products are stainless steel anti-corrosion pumps, fluorine-lined chemical pumps, pipeline centrifugal pumps, self-priming clean water pumps, Self-priming sewage pumps, stainless steel vertical multi-stage pumps, coaxial eddy current pumps, cantilever centrifugal pumps, horizontal multi-stage pumps, single-stage double suction pumps, water ring vacuum pumps, submersible sewage pumps, hot oil pumps, etc. The products are mainly suitable for dyeing and finishing, washing, chemical industry, food, environmental protection, air conditioning cycle, high-rise building pressurization, machinery plant equipment matching and so on.
