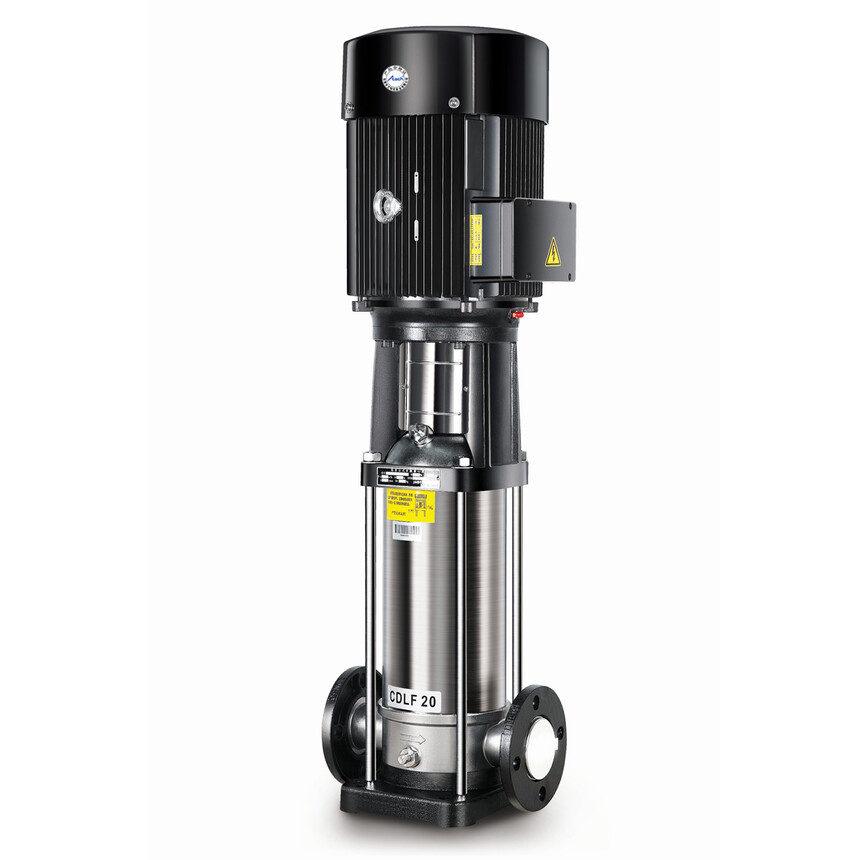

Bare Shaft Vertical Multistage Water Pump DL2-50 Stainless steel centrifugal pump/duplex steel centrifugal pump/titanium alloy centrifugal pump

- Name of pump: Bare Shaft Vertical Multistage Water Pump

- Pump Type: Centrifugal Pump

- Pump model: DL2-50


- Pump brand: ATACH

-Installation Type: vertical coupling

- Impeller Quantity: 5 pcs

- Rated pump capacity: 2 m3/h

- Rated pump head: 37 m

- Power/speed: 0.55 Kw/2900 r.p.m

- Power supply:3 phase/380V/50HZ
(also supply special voltage,special frequency, explosion-proof motor, High efficiency and energy saving motor )

- Material Supply: Cast Iron,SUS304,SUS316,SUS316L

- Shaft Seal: Mechanical seal

- Inlet / outlet : 25mm*25mm

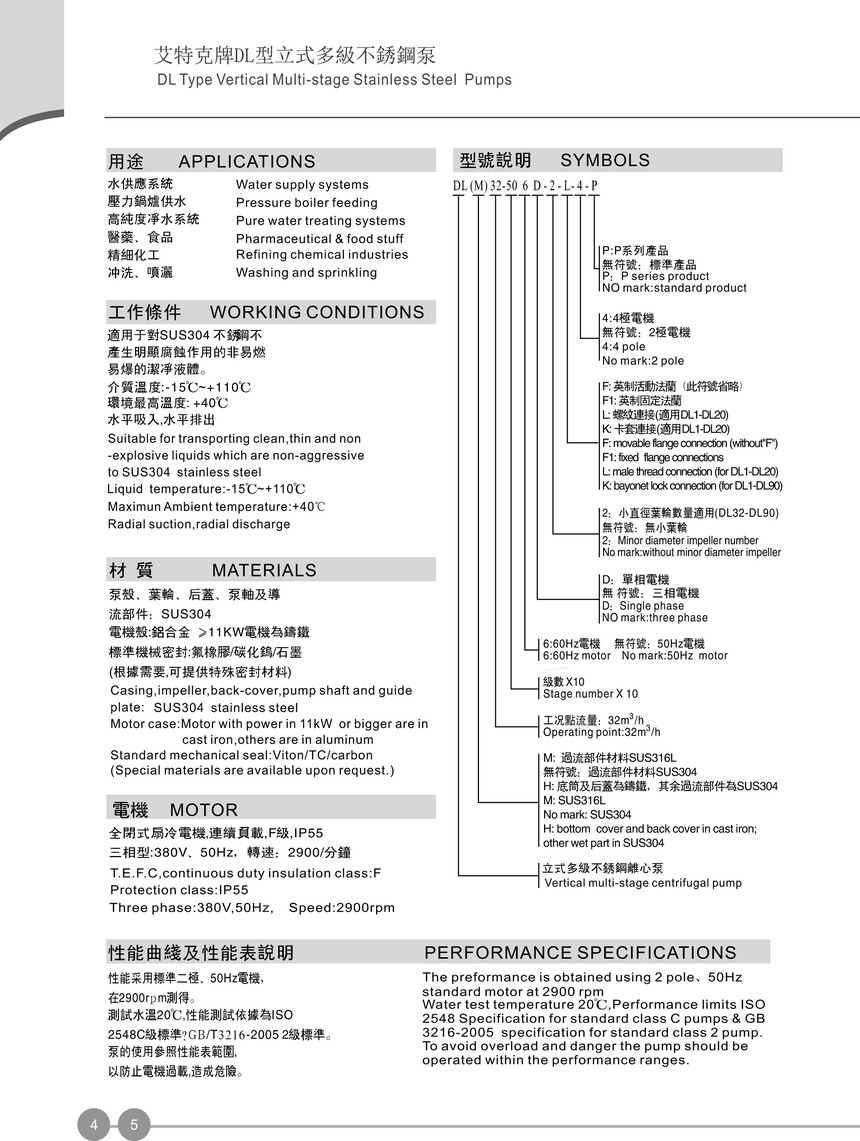

- APPLICATIONS:
Water supply systems
Pressure boiler feeding
Pure water treating systems
Pharmaceutical & food stuff
Refining chemical industries
Washing and sprinkling

- WORKING CONDITIONS:
Suitable for transporting clean,thin and non -explosive liquids which are non-aggressive to SUS304 stainless steel
Liquid temperature:-15ºC~+110ºC
Maximun Ambient temperature:+40ºC
Radial suction,radial discharge

- MATERIALS:
Casing,impeller,back-cover,pump shaft and guide plate: SUS304 stainless steel
Motor case:Motor with power in 11kW or bigger are in cast iron,others are in aluminum Standard mechanical seal:Viton/TC/carbon (Special materials are available upon request.)

- MOTOR:
T.E.F.C,continuous duty insulation class:F Protection class:IP55
Three phase:380V,50Hz, Speed:2900rpm

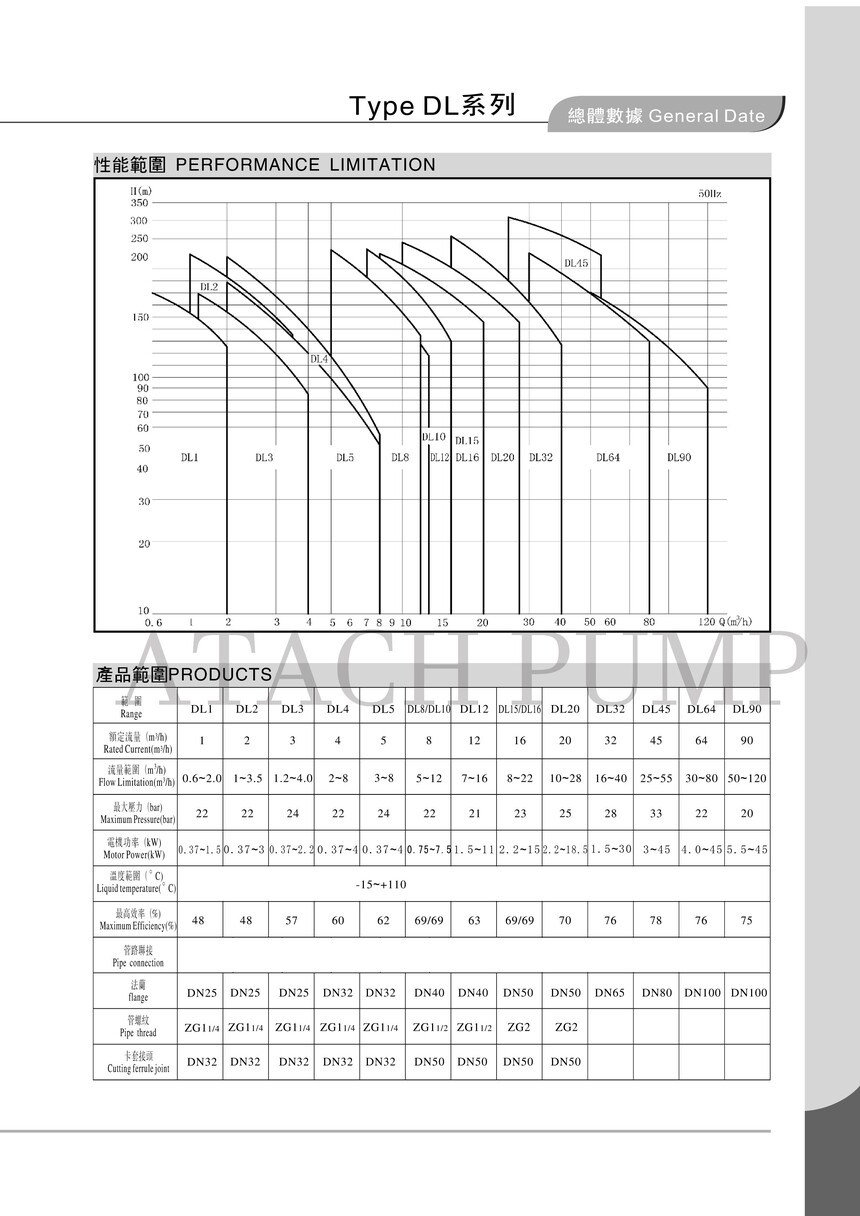

If you need other specifications or parameters of DL series Vertical multistage pump, please contact us in detail.
