ATACH ZENS250-6N-475 Pump Equivalent To Two-way Entrance Double Suction Split Case Pump 1D 500-63 With 160 KwTime：2026-09-09

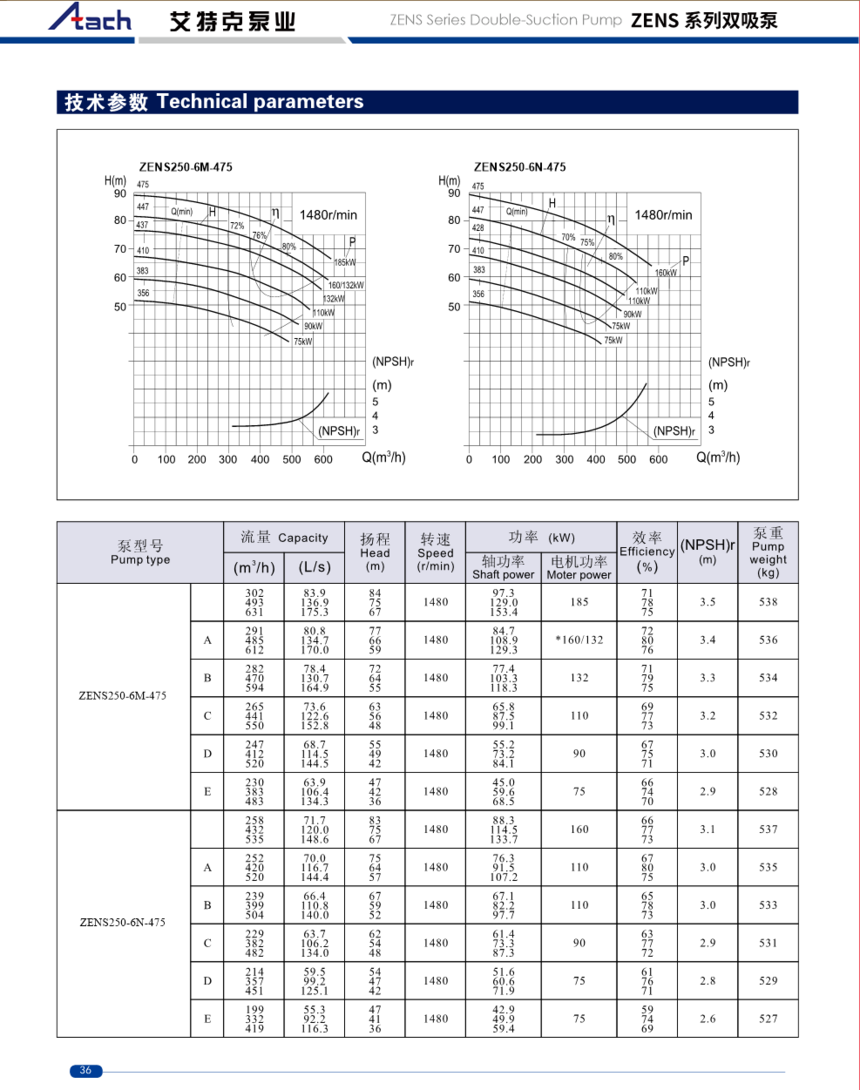

The double-inlet double suction split case pump, Model 1D 500-63, is equipped with a 160 kW motor with the following specifications:Flow rate: 500 m³/hHead: 63 mSpeed: 1450 rpmMotor power: 160 kWRequired NPSH: 4.5 mInlet & outlet flange: 250 mm × 150 mm ATACH brand ZENS250-6N-475 double suction split case pump is a perfect replacement for the above model.Specifications of ZENS250-6N-475 (refer to the datasheet in attached drawing for verification):Flow rate: 535 m³/h (higher than 1D 500-63)Head: 67 m (higher than 1D 500-63)Speed: 1480 rpm (same series 4-pole 3-phase asynchronous motor as 1D 500-63)Motor power: 160 kW (identical to 1D 500-63)Required NPSH: 3.1 m (lower than 1D 500-63, less susceptible to cavitation)Inlet & outlet flange: 250 mm × 150 mm (identical to 1D 500-63) In summary, ATACH ZENS250-6N-475 fully meets the requirement to replace pump model 1D 500-63.Should you require other pump models within ATACH ZENS series, please feel free to contact us. |
