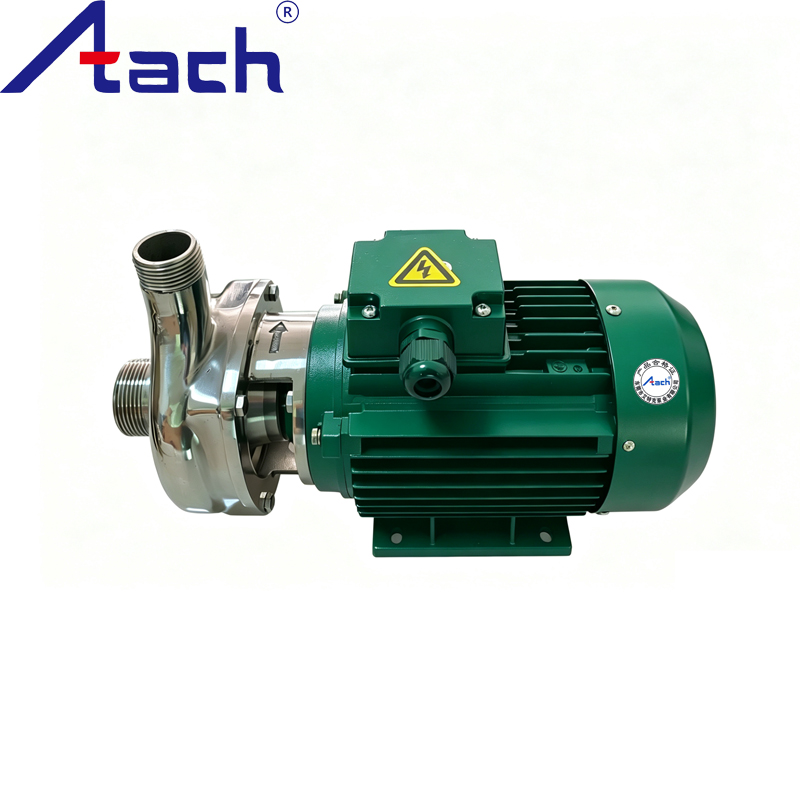

stainless steel industrial 1hp centrifugal water pump for sewage

For small-power micro motors used to drive centrifugal sewage pumps, ATACH has unique advantages. Why?

The reasons are as follows:

1) A lot of wastewater contains particles that can easily clog the impeller. The GFF40-13A series of stainless steel corrosion-resistant monoblock centrifugal pumps of the ATACH brand adopt a semi-open impeller structure, so there is no need to worry about clogging at all.

2) This pump can be powered by a single-phase 220-240V/50Hz motor or a three-phase 220/380/400/415/440/460/480/60Hz motor.

3) The rated parameters of this pump are 7.5 m³/hr @ 13m. Flow range: 4.5 - 15 m³/hr. Head range: 15 - 6 m.

4) Motor power: 0.75KW/1Hp. Rotational speed: 2830RPM @ 50Hz.

5) Inlet/outlet: 40*25. Connection method: Male thread.

6) NPSH (r): 3.5m.

7) Certification: CE and enterprise quality certificate.

8) Materials: Stainless steel 304/316/316L.

9) Mechanical seal: The conventional type is silicon carbide-graphite. Optional type is tungsten carbide-silicon carbide.

If you have any questions about the ATACH GFF series single-stage sewage pumps, please feel free to contact our factory at any time.
