Centrifugal pump with specifications 100 m³/h 30 m impeller semi-open all stainless steel for 40°C water

Time：2026-10-13 【Original】 Read

For the above‑mentioned pump requirement from Indonesia, this is a core strength of China ATACH Pump Manufacturing Co., Ltd.

The ATACH ZZ‑series slurry pump is a new‑generation semi open impeller industrial centrifugal pump specially developed for media containing solid particles and impurities.

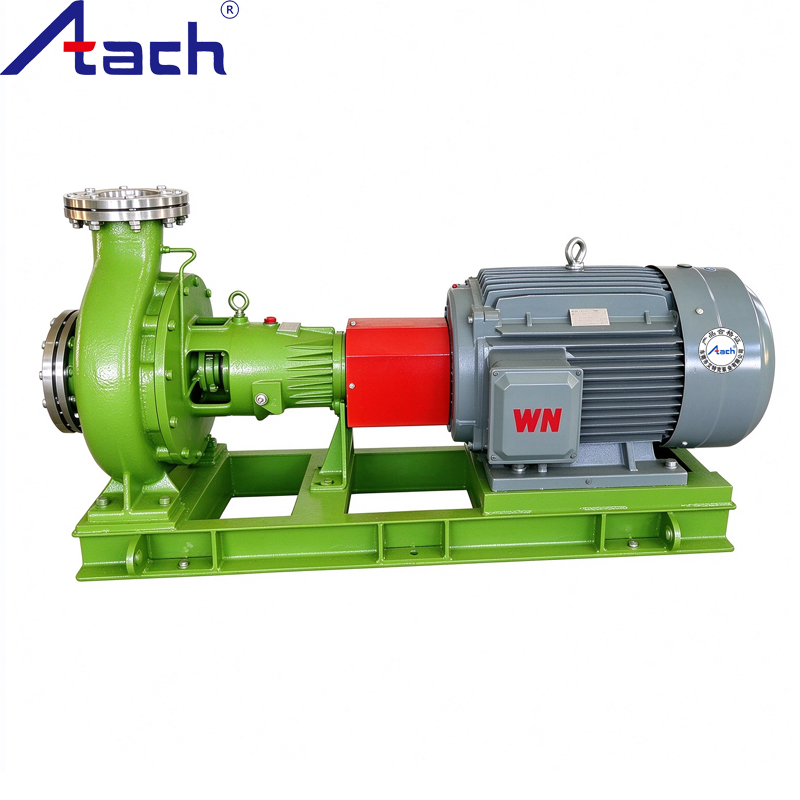

The corresponding model for this requirement is ZZ125‑100‑315, with the following performance specifications:

Rated capacity: 100 m³/h
Rated head: 30 m
Matching motor power: 18.5 kW
Rotational speed: 1450 rpm
Wetted parts including impeller and pump casing: fully 304 stainless steel
Impeller design: semi‑open type
Pump bearings: SKF brand
Mechanical seal: single‑end configuration with PLAN 11 flush plan; material combination: FKM‑SiC‑WC‑SS304
Coupling: extended‑diaphragm type
Motor: 3‑phase, 380 V, 50 Hz, IE3 efficiency class, IP55 protection class, Class‑F insulation, high‑efficiency all‑copper winding
Production lead time: 15 working days
MOQ: 1 unit
Payment terms: 30% advance deposit, 70% balance before shipment
Packing: export‑grade all‑plywood wooden cases
Available trade terms: EXW, FCA, FOB, CIF, CFR, DDP
ATACH is committed to R&D, manufacturing and OEM service of high‑efficiency, high‑quality pumps for worldwide markets.
