What is the model cross-reference between Japan Ebara 3M series stainless steel end-suction pumps and China ATACH GZA(S) series stainless steel centrifugal pumps?

Time：2026-10-16 【Original】 Read

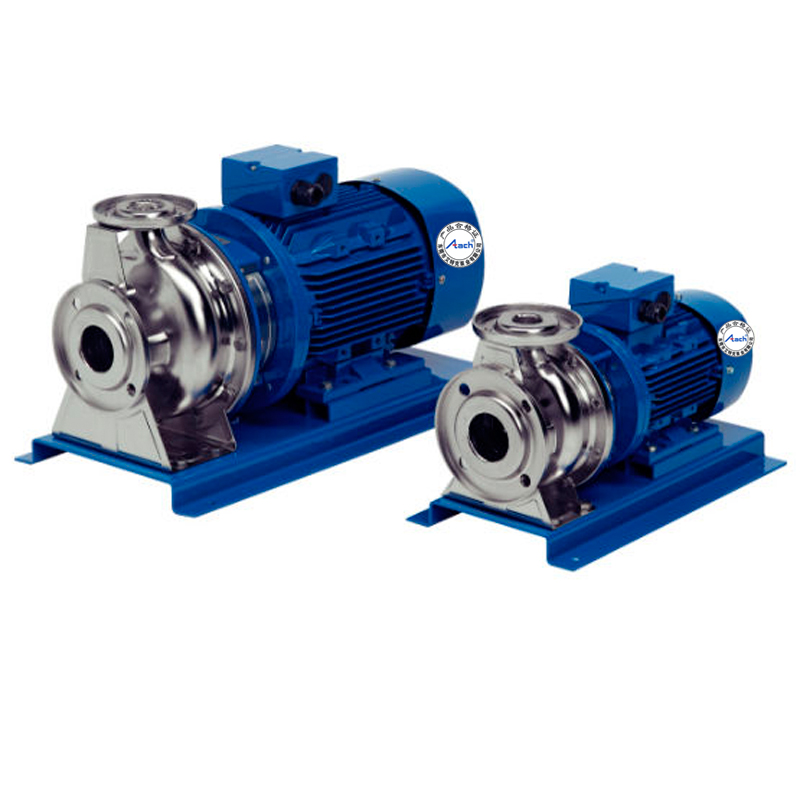

GZA 3.JPG

Regarding the above question, the answer is affirmative. ATACH GZA(S) series stainless steel centrifugal pumps have one-to-one model correspondence with Ebara 3M series stainless steel end-suction pumps. We list part of the cross-reference table below for your reference during pump replacement:

ITEM	ATACH Model		EBARA Model		Power Supply	Mechanical Seal	O-ring
1	GZA(S)	50-32-125/1.1	3M	32-125/1.1	3×380 V-50Hz	FKM-304-Carbon-SIC	FKM
2	GZA(S)	50-32-160/2.2	3M	32-160/2.2
3	GZA(S)	50-32-160/1.5	3M	32-160/1.5
4	GZA(S)	50-32-200/3.0	3M	32-200/3.0
5	GZA(S)	50-32-200/4.0	3M	32-200/4.0
6	GZA(S)	50-32-200/5.5	3M	32-200/5.5

7	GZA(S)	65-40-125/1.5	3M	40-125/1.5	3×380 V-50Hz	FKM-304-Carbon-SIC	FKM
8	GZA(S)	65-40-125/2.2	3M	40-125/2.2
9	GZA(S)	65-40-160/3.0	3M	40-160/3.0
10	GZA(S)	65-40-200/5.5	3M	40-200/5.5
11	GZA(S)	65-40-200/7.5	3M	40-200/7.5
12	GZA(S)	65-40-200/7.5	3M	40-200/7.5

13	GZA(S)	65-50-125/2.2	3M	50-125/2.2	3×380 V-50Hz	FKM-304-Carbon-SIC	FKM
14	GZA(S)	65-50-125/4.0	3M	50-125/4.0
15	GZA(S)	65-50-160/7.5	3M	50-160/7.5
16	GZA(S)	65-50-200/9.2	3M	50-200/9.2

Should you have any questions regarding this cross-reference list, please feel free to contact ATACH Pump Manufacturer. We are ready to provide full support.
