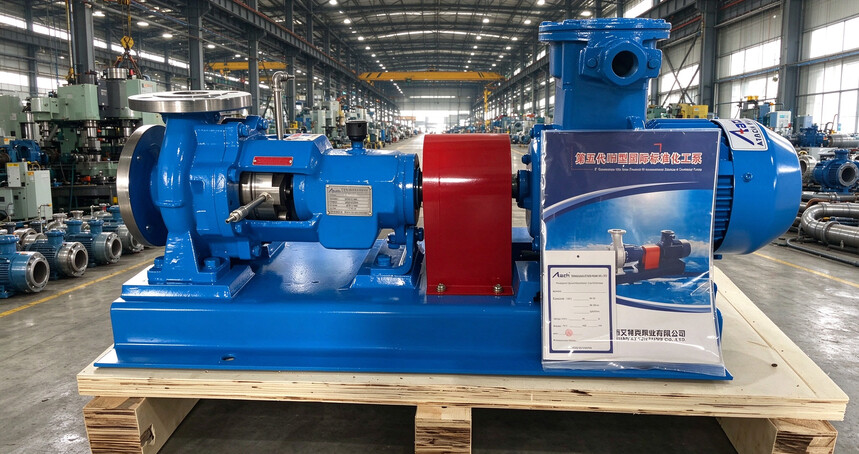

ATACH brand (Made in China) IH80-65-125B FSWSR & IH80-65-125 FSWSR stainless steel hot oil transfer pumps for water-containing CNSL service in VietnamTime：2026-09-21 **************

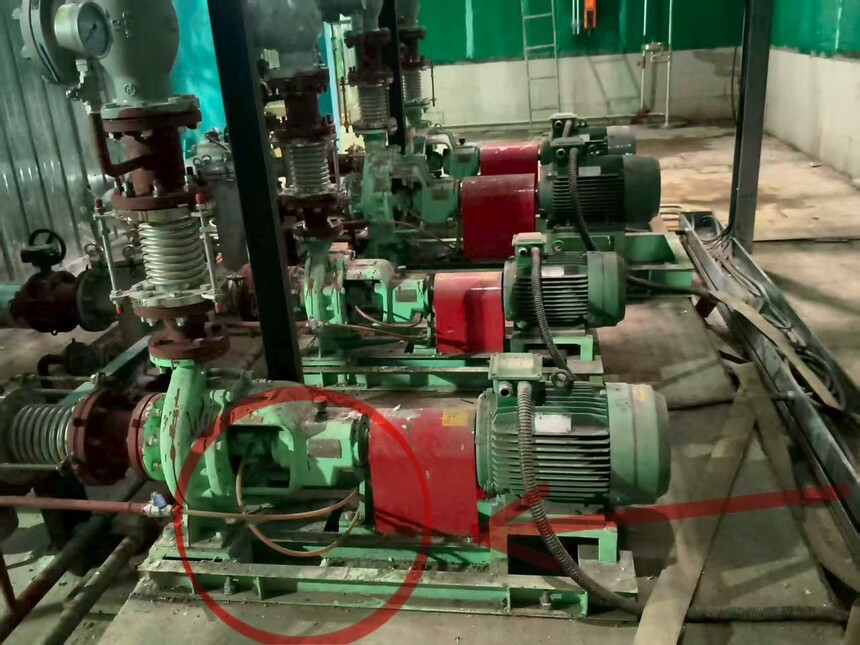

****** The Vietnamese client requires the replacement of 35 faulty existing pumps. We hereby provide a specification illustration for 7 units in total covering two models as follows: 1) 5 units with motor power of 5.5KW; Flow rate (Q): 30m³/hr, Head (H): 5-10m, Rotational speed: 2900rpm 2) 2 units with motor power of 7.5KW; Flow rate (Q): 60m³/hr, Head (H): 5-7m, Rotational speed: 2900rpm These pumps are designed to handle CNSL (Cashew Nut Shell Liquid) and support 24/7 continuous operation all year round at a working temperature ranging from 70℃ to 90℃ without shutdown. The client has put forward strict mandatory requirements for the mechanical seal. A Type 224 double mechanical seal is specified with a dedicated material configuration: 304 stainless steel / Viton / alloy vs alloy. In addition, the outer end of the mechanical seal must be equipped with inlet and outlet flushing ports. ATACH possesses distinctive professional advantages for the above working conditions. Our core R&D and manufacturing focus has long been on chemical process pumps with flushing systems, granting us an absolute edge in cost performance in this field. From our Shanghai manufacturing base, ATACH has delivered a large number of customized pump solutions for chemical and oilfield clients, earning widespread market recognition and favorable reputation worldwide. Furthermore, ATACH is capable of supplying stainless steel cantilever centrifugal pumps adapted for higher temperature, higher viscosity and higher specific gravity oil-based media, which are professionally customized for all kinds of oil medium applications. Adhering to the core advantages of stability and durability, ATACH keeps optimizing product performance and upgrading technical strength to deliver reliable pumping solutions for global clients. |
