Xylene-Methyl butyrate acetate-Ethylene glycol butyl ether-Ethyl acetate-Butanone-n-Butyl acetate pumped by a SS304 self-priming pump-double-end face mechanical seal with explosion-proof BT4 motor

For many materials produced by new material technology companies such as xylene, methyl butyl acetate, ethylene glycol butyl ether, ethyl acetate, butanone, and n-butyl acetate, these media are pumped from underground storage tanks to the surface storage tanks through pumps. Usually, the pumps are installed on the ground base. So, how can this entire process be completed while ensuring safety and the normal durability of the pump equipment?

First of all, the selection of the above organic solvents for the pump's seals, especially the rubber parts, is crucial. These organic solvents cannot be used to replace the common fluorine rubber, EPDM rubber, etc. They will be penetrated by the organic solvents and undergo swelling, which will quickly lead to the failure of the O-ring and mechanical seals.

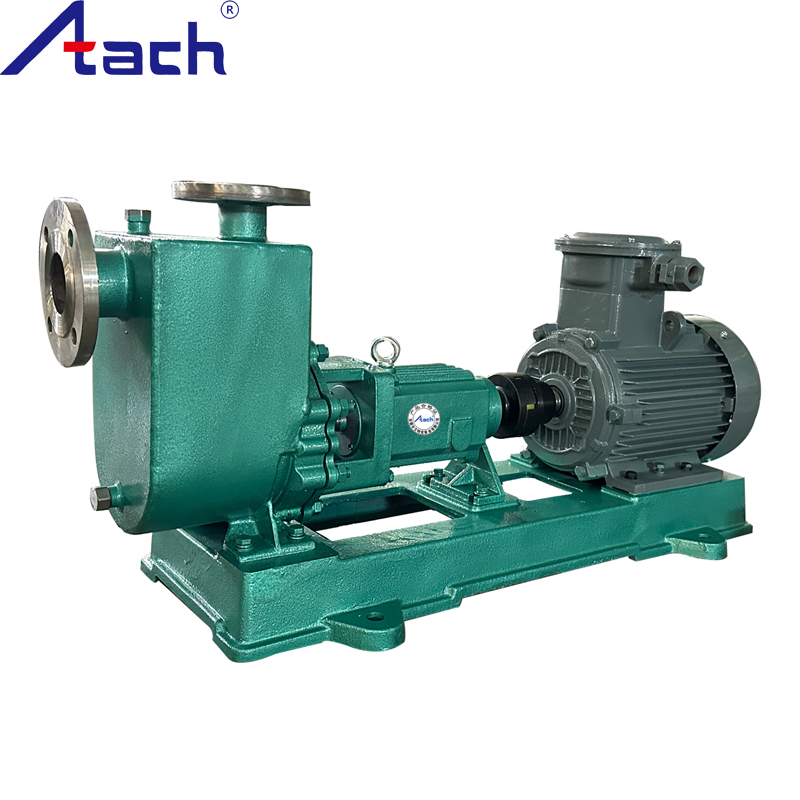

For the above solvents under normal temperature conditions, we recommend using self-priming stainless steel chemical pumps as the carrier. The motor should use a BT4 explosion-proof grade motor for driving. The pump's sealing gasket is made of PTFE material, and the mechanical seal of the pump adopts a double-end face mechanical seal. This design ensures that the pump can suck liquid from a lower position while also preventing the motor from generating an explosive risk. Moreover, the mechanical seal of the pump will be very durable.

If for uncertain chemical media, there is no suitable transportation solution available, you can contact the sales department of ATACH Pumping Company at any time. We will provide a targeted solution.
