double-entry pumps with a flow rate of 2086 m3/h mechanical seal type bare shaft end SH series 20 inch inlet flange

ATACH industrial water pump factory has factories in both Dongguan and Shanghai of China. The pump factory in Shanghai produces API series chemical process pumps, while the factory in Guangdong produces a series of standard centrifugal pumps, etc.

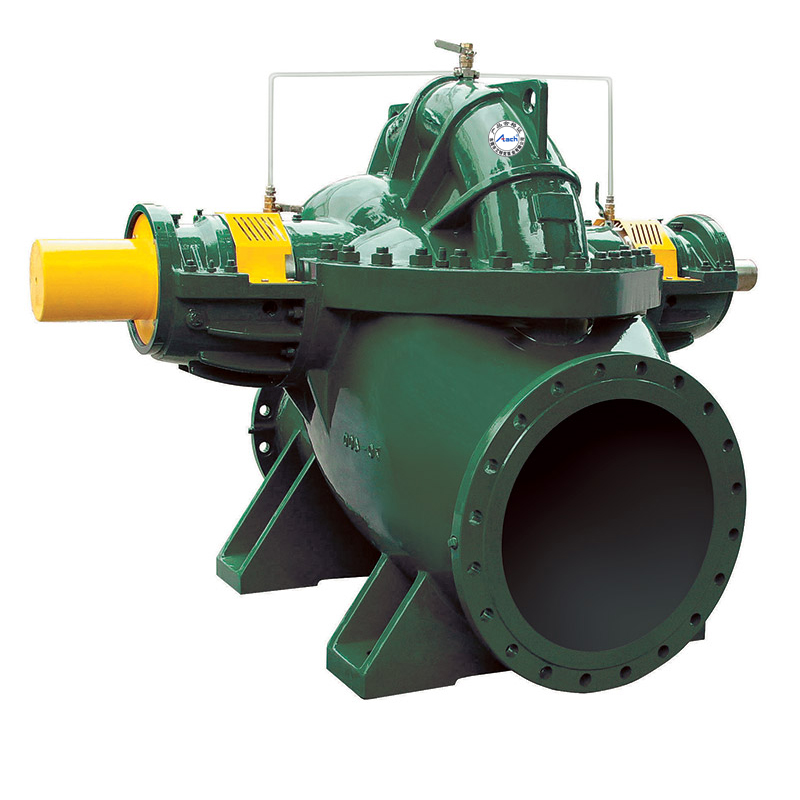

For many pumps with dual channels or dual suction requirements, such as a flow rate of 2086 m3/h, our 20SH-6A or 500S98A can be used. This pump features a double suction structure and dual channel flow paths. The flow rate at the operating point is 2170 m3/hr, the head is 67 m, the rated power is 630 KW, and it is paired with a 6-pole 970 rpm motor. The NPSH(r) value of this pump is 4 m, and its mass is 2400 KGS. The inlet flange diameter is 500 mm / 20 inches.

The conventional pump casing/impeller material is cast iron, and the shaft material is 2Cr13.

The shaft seal can be selected as a packing seal or a mechanical seal structure.

It is an indispensable pump product for large hydropower plants, farm irrigation, power supply, etc.

If you have any questions regarding the SH/S series dual-channel pumps of the ATACH brand, please feel free to contact us at any time.
